JIC 37° Flare Fittings · 6505 family
6505-04-04-SS

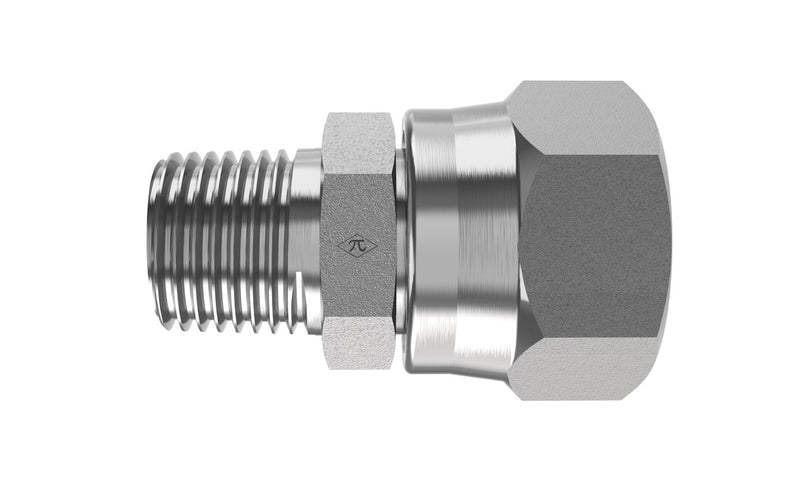

1/4" Male NPTF 30° x 1/4" Female JIC Swivel · Swivel Connector
$15.20
per pieceIn stock
- Side 1
- 1/4" Male NPTF 30°
- Side 2
- 1/4" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 1/4-18 NPTF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male NPTF 30°
Side 21/4" Female JIC Swivel
Thread Type1/4-18 NPTF
Pipe Size1/4"
MaterialStainless Steel
ConfigurationSwivel Connector
StandardSAE J476 / SAE J514

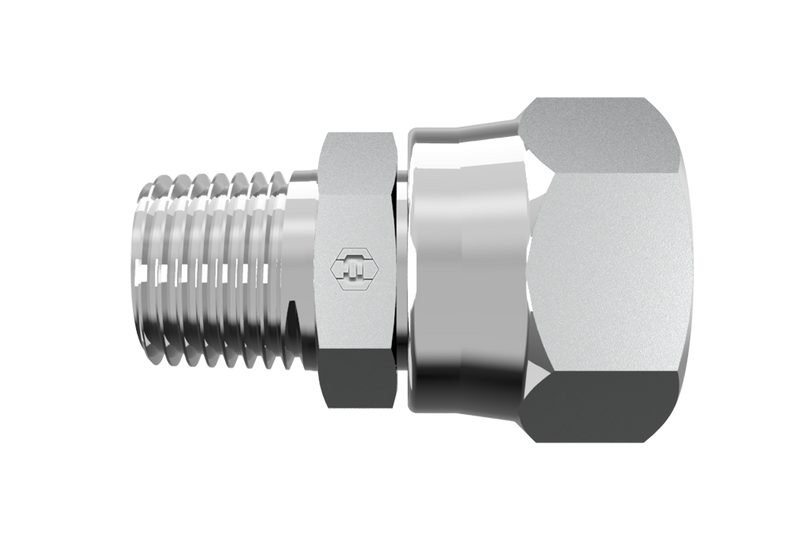

6505-04-04-SS is a 1/4" Male NPTF 30° x 1/4" Female JIC Swivel in the 6505 Series. For connecting pipe to JIC lines using a swivel for alignment and without requiring pipe sealant.
Specifications
| Part Number | 6505-04-04-SS |
|---|---|
| Series | 6505 |
| Product Type | Swivel Connector |
| Side 1 Connection | 1/4" Male NPTF 30° |
| Side 2 Connection | 1/4" Female JIC Swivel |
| Pipe Size (Side 1) | 1/4" |
| Thread Type (Side 1) | 1/4-18 NPTF |
| Thread Type (Side 2) | 1/4-18 NPTF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.08 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male NPTF 30°
- Thread1/4-18 NPTF
- Pipe Size1/4"
- StandardSAE J476
Side 2
1/4" Female JIC Swivel
- Thread1/4-18 NPTF
- Tube OD1/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Connector
- Weight0.08 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6505
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2018-4-4 | 6505-04-04-SS |
| Parker (Triple-Lok / TFD) | 4-4 F6X-SS | 6505-04-04-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
