JIC 37° Flare Fittings · 6565 family

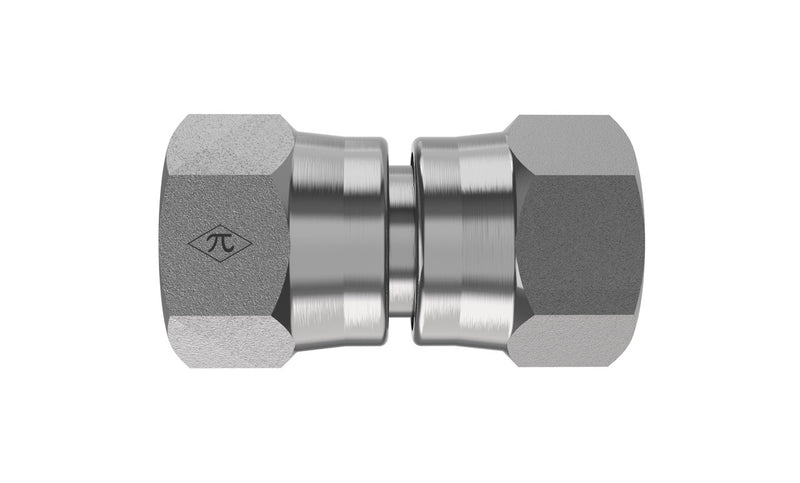

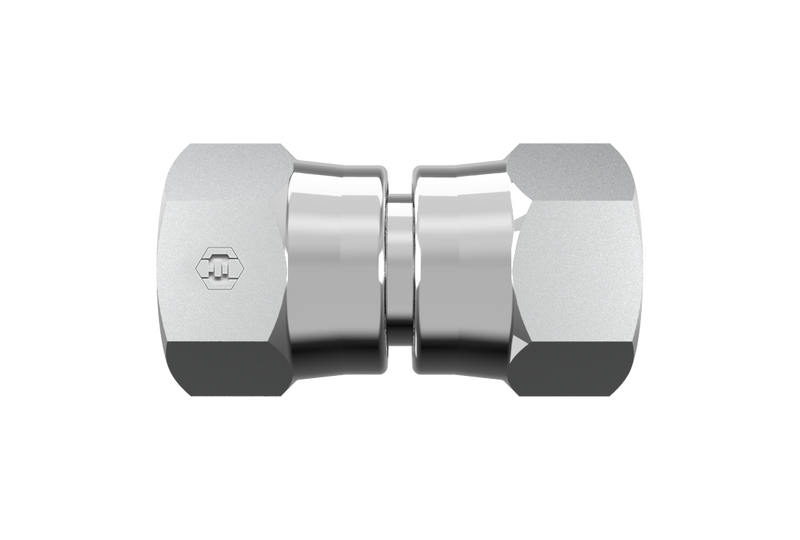

6565-06-06
3/8" Female JIC Swivel x 3/8" Female JIC Swivel · Swivel Union
$2.44
per pieceIn stock
- Side 1
- 3/8" Female JIC Swivel
- Side 2
- 3/8" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Female JIC Swivel
Side 23/8" Female JIC Swivel
Thread Type9/16-18 UNF
Tube OD3/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Union
StandardSAE J514
6565-06-06 is a 3/8" Female JIC Swivel x 3/8" Female JIC Swivel in the 6565 Series. For joining two JIC lines together using swivels for alignment.
Specifications
| Part Number | 6565-06-06 |
|---|---|
| Series | 6565 |
| Product Type | Swivel Union |
| Side 1 Connection | 3/8" Female JIC Swivel |
| Side 2 Connection | 3/8" Female JIC Swivel |
| Tube OD (Side 1) | 3/8" |
| Thread Type (Side 1) | 9/16-18 UNF |
| Thread Type (Side 2) | 9/16-18 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2B Thread |
| Weight | 0.08 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Female JIC Swivel
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514 - Class 2B Thread
Side 2
3/8" Female JIC Swivel
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Union
- Weight0.08 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6565
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | FF1730-0606S | 6565-06-06 |
| Parker (Triple-Lok / TFD) | 6 HX6-S | 6565-06-06 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
