6565

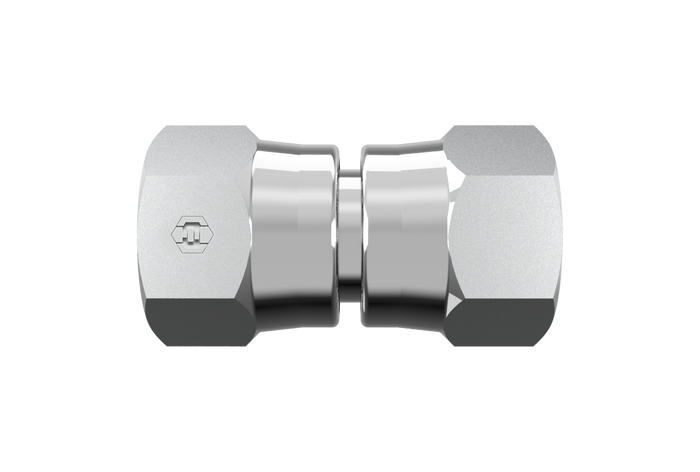

6565 is a straight swivel union carrying a female JIC 37° swivel end at each side, mating two male JIC flare ends without turning either tube.
- Shape
- Swivel Union
- Side 1
- Female JIC Swivel
- Side 2
- Female JIC Swivel
- Standard
- SAE J514 - Class 2B Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 23 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6565-04-04 | 1/4" Female JIC Swivel | 1/4" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $7.88 | In stock | View |
| 6565-05-04 | 5/16" Female JIC Swivel | 1/4" Female JIC Swivel | 1/2-20 UNF | Steel | Trivalent Zinc | $32.62 | In stock | View |
| 6565-05-05 | 5/16" Female JIC Swivel | 5/16" Female JIC Swivel | 1/2-20 UNF | Steel | Trivalent Zinc | $9.87 | In stock | View |
| 6565-06-04 | 3/8" Female JIC Swivel | 1/4" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $28.10 | In stock | View |
| 6565-06-05 | 3/8" Female JIC Swivel | 5/16" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $40.43 | In stock | View |
| 6565-06-06 | 3/8" Female JIC Swivel | 3/8" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $8.54 | In stock | View |
| 6565-08-04 | 1/2" Female JIC Swivel | 1/4" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $61.01 | In stock | View |
| 6565-08-06 | 1/2" Female JIC Swivel | 3/8" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $17.99 | In stock | View |
| 6565-08-08 | 1/2" Female JIC Swivel | 1/2" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $11.94 | In stock | View |
| 6565-10-06 | 5/8" Female JIC Swivel | 3/8" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $74.34 | In stock | View |
| 6565-10-08 | 5/8" Female JIC Swivel | 1/2" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $25.87 | In stock | View |
| 6565-10-10 | 5/8" Female JIC Swivel | 5/8" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $14.04 | In stock | View |
| 6565-12-08 | 3/4" Female JIC Swivel | 1/2" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $33.64 | In stock | View |
| 6565-12-10 | 3/4" Female JIC Swivel | 5/8" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $61.32 | In stock | View |
| 6565-12-12 | 3/4" Female JIC Swivel | 3/4" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $19.88 | In stock | View |
| 6565-14-14 | 7/8" Female JIC Swivel | 7/8" Female JIC Swivel | 1-3/16-12 UN | Steel | Trivalent Zinc | $67.83 | In stock | View |
| 6565-16-12 | 1" Female JIC Swivel | 3/4" Female JIC Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $91.32 | In stock | View |
| 6565-16-16 | 1" Female JIC Swivel | 1" Female JIC Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $29.37 | In stock | View |
| 6565-20-16 | 1-1/4" Female JIC Swivel | 1" Female JIC Swivel | 1-5/8-12 UN | Steel | Trivalent Zinc | $143.47 | In stock | View |
| 6565-20-20 | 1-1/4" Female JIC Swivel | 1-1/4" Female JIC Swivel | 1-5/8-12 UN | Steel | Trivalent Zinc | $46.24 | In stock | View |
| 6565-24-20 | 1-1/2" Female JIC Swivel | 1-1/4" Female JIC Swivel | 1-7/8-12 UN | Steel | Trivalent Zinc | $200.87 | In stock | View |
| 6565-24-24 | 1-1/2" Female JIC Swivel | 1-1/2" Female JIC Swivel | 1-7/8-12 UN | Steel | Trivalent Zinc | $65.98 | In stock | View |
| 6565-32-32 | 2" Female JIC Swivel | 2" Female JIC Swivel | 2-1/2-12 UN | Steel | Trivalent Zinc | $149.76 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
