JIC 37° Flare Fittings · 6565 family
6565-12-08

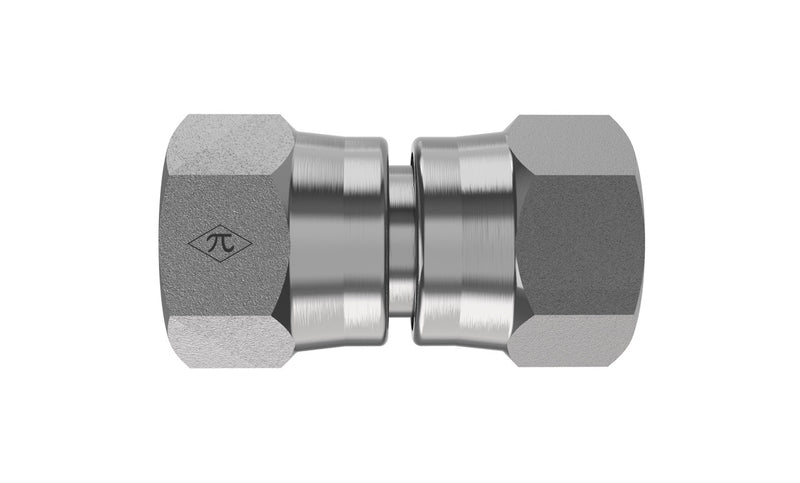

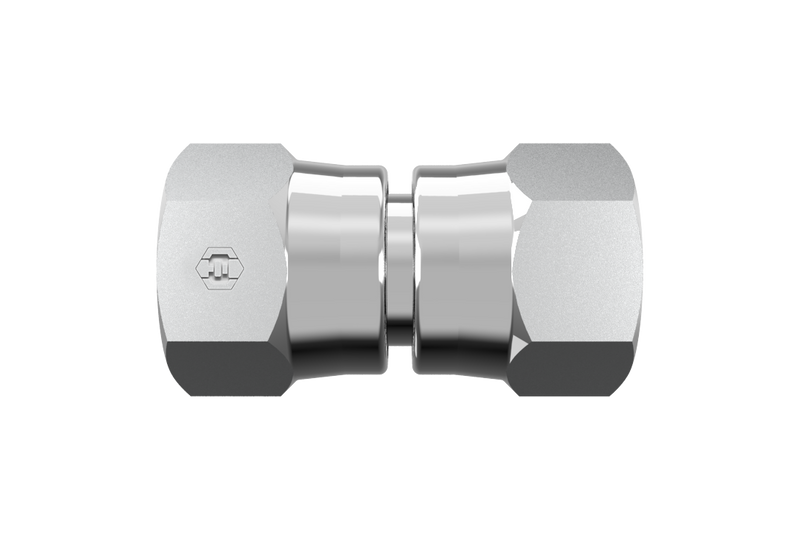

3/4" Female JIC Swivel x 1/2" Female JIC Swivel · Swivel Union
$9.61
per pieceIn stock
- Side 1
- 3/4" Female JIC Swivel
- Side 2
- 1/2" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Female JIC Swivel
Side 21/2" Female JIC Swivel
Thread Type1-1/16-12 UN
Tube OD3/4" × 1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Union
StandardSAE J514
6565-12-08 is a 3/4" Female JIC Swivel x 1/2" Female JIC Swivel in the 6565 Series. For joining two JIC lines together using swivels for alignment.
Specifications
| Part Number | 6565-12-08 |
|---|---|
| Series | 6565 |
| Product Type | Swivel Union |
| Side 1 Connection | 3/4" Female JIC Swivel |
| Side 2 Connection | 1/2" Female JIC Swivel |
| Tube OD (Side 1 / Side 2) | 3/4" / 1/2" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2B Thread |
| Weight | 0.28 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Female JIC Swivel
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2B Thread
Side 2
1/2" Female JIC Swivel
- Thread1-1/16-12 UN
- Tube OD1/2"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Union
- Weight0.28 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6565
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | FF1730-1208S | 6565-12-08 |
| Parker (Triple-Lok / TFD) | 12-8 HX6-S | 6565-12-08 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
