JIC 37° Flare Fittings · 6802-NWO-FG family
6802-32-32-NWO-SS
2" Male JIC x 2-1/2-12 Male Adjustable O-Ring Boss · Adjustable Elbow
$425.51
per pieceIn stock
- Side 1
- 2" Male JIC
- Side 2
- 2-1/2-12 Male Adjustable O-Ring Boss
- Material
- Stainless Steel
- Thread
- 2-1/2-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Side 22-1/2-12 Male Adjustable O-Ring Boss
Thread Type2-1/2-12 UN
Tube OD2"
MaterialStainless Steel
ConfigurationAdjustable Elbow
StandardSAE J514 / SAE J1453 / J514

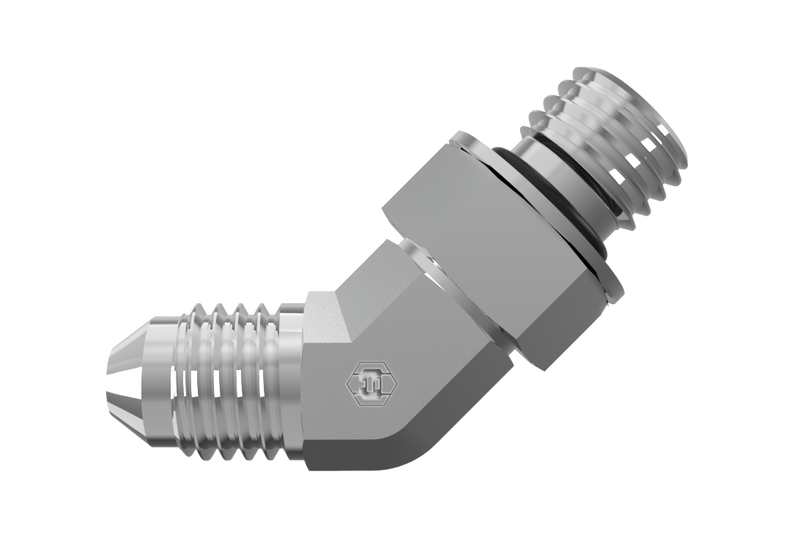

6802-32-32-NWO-SS is a 2" Male JIC x 2-1/2-12 Male Adjustable O-Ring Boss in the 6802-NWO-FG Series. For connecting 37° flared tubes or lines to an O-ring boss port at a 45° angle.
Specifications
| Part Number | 6802-32-32-NWO-SS |
|---|---|
| Series | 6802-NWO-FG |
| Product Type | Adjustable Elbow |
| Side 1 Connection | 2" Male JIC |
| Side 2 Connection | 2-1/2-12 Male Adjustable O-Ring Boss |
| Tube OD | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J1453 / J514 |
| Weight | 2.94 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2-1/2-12 Male Adjustable O-Ring Boss
- Thread2-1/2-12 UN
- StandardSAE J1453 / J514
Construction
- MaterialStainless Steel
- ConfigurationAdjustable Elbow
- Weight2.94 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6802-NWO-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2061-32-32 | 6802-32-32-NWO-SS |
| Parker (Triple-Lok / TFD) | 32 V5OX-SS | 6802-32-32-NWO-SS |
| Sae | SAE J514 32-32 070320SN | 6802-32-32-NWO-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
