JIC 37° Flare Fittings · 6809-NWO-FG family
6809-08-12-NWO-SS
3/4-16 Male Adjustable O-Ring Boss x 3/4" Female JIC Swivel · Adjustable Swivel Elbow
$92.41
per pieceIn stock
- Side 1
- 3/4-16 Male Adjustable O-Ring Boss
- Side 2
- 3/4" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 3/4-16 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4-16 Male Adjustable O-Ring Boss
Side 23/4" Female JIC Swivel
Thread Type3/4-16 UNF
MaterialStainless Steel
ConfigurationAdjustable Swivel Elbow
StandardSAE J1453 / J514 / SAE J514

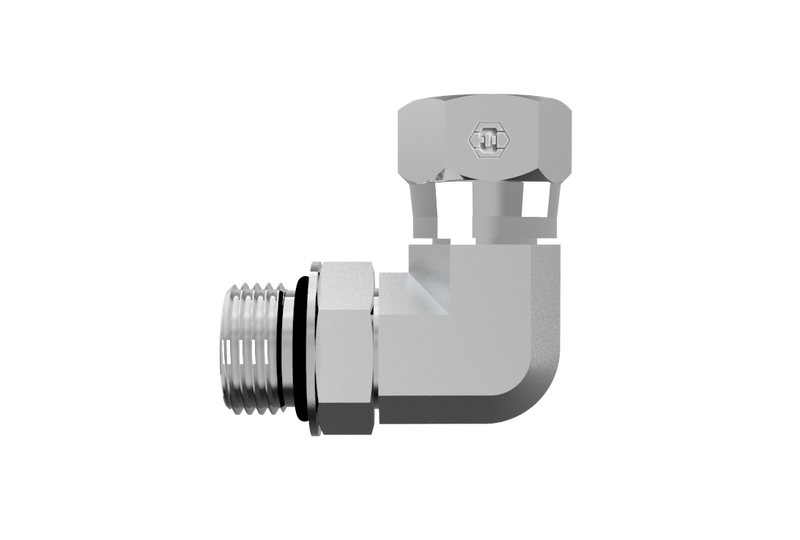

6809-08-12-NWO-SS is a 3/4-16 Male Adjustable O-Ring Boss x 3/4" Female JIC Swivel in the 6809-NWO-FG Series. For connecting an O-ring boss port to a 37° flared tube or line at a 90° angle.
Specifications
| Part Number | 6809-08-12-NWO-SS |
|---|---|
| Series | 6809-NWO-FG |
| Product Type | Adjustable Swivel Elbow |
| Side 1 Connection | 3/4-16 Male Adjustable O-Ring Boss |
| Side 2 Connection | 3/4" Female JIC Swivel |
| Thread Type (Side 1) | 3/4-16 UNF |
| Thread Type (Side 2) | 3/4-16 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J1453 / J514 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.50 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4-16 Male Adjustable O-Ring Boss
- Thread3/4-16 UNF
- StandardSAE J1453 / J514
Side 2
3/4" Female JIC Swivel
- Thread3/4-16 UNF
- Tube OD3/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationAdjustable Swivel Elbow
- Weight0.50 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6809-NWO-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2214-8-12 | 6809-08-12-NWO-SS |
| Parker (Triple-Lok / TFD) | 12-8 AOEX6-SS | 6809-08-12-NWO-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
