7002-32-40
2" Male JIC x 2-1/2" Male BSPP · Adapter
$243.46
per pieceIn stock
- Side 1
- 2" Male JIC
- Side 2
- 2-1/2" Male BSPP
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Side 22-1/2" Male BSPP
Thread Type2-1/2-12 UN
Tube OD2"
Pipe Size2-1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationAdapter
StandardSAE J514 / BS 5200 / ISO 228

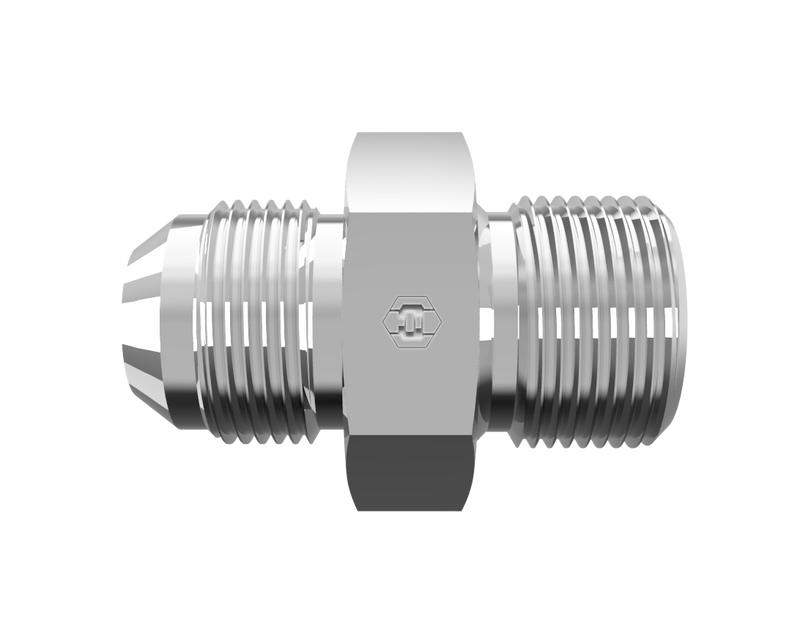

7002-32-40 is a 2" Male JIC x 2-1/2" Male BSPP in the 7002 Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port.
Specifications
| Part Number | 7002-32-40 |
|---|---|
| Series | 7002 |
| Product Type | Adapter |
| Side 1 Connection | 2" Male JIC |
| Side 2 Connection | 2-1/2" Male BSPP |
| Tube OD | 2" |
| Pipe Size (Side 2) | 2-1/2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | BS 5200 / ISO 228 |
| Weight | 2.21 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2-1/2" Male BSPP
- Thread2-1/2-12 UN
- Pipe Size2-1/2"
- StandardBS 5200 / ISO 228
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationAdapter
- Weight2.21 lb
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2063-40-32S | 7002-32-40 |
| Parker (Triple-Lok / TFD) | 32-40 XHK4S | 7002-32-40 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
