7003-08-10

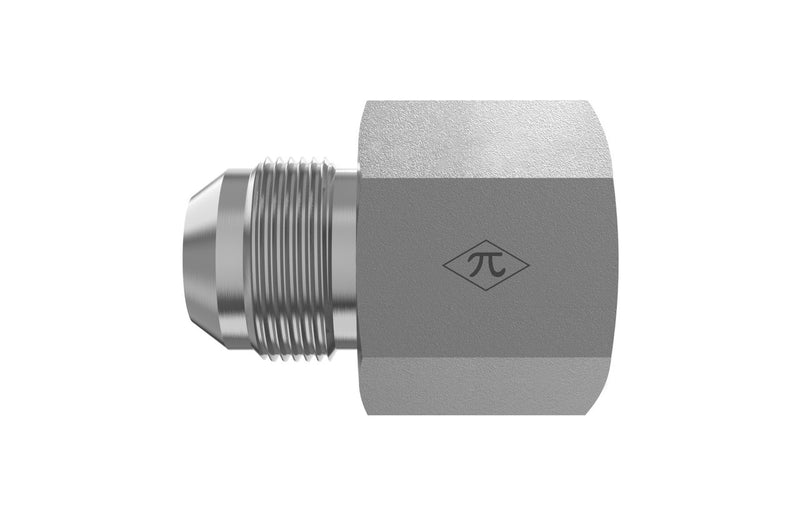

1/2" Male JIC x 5/8" Female BSPP · Adapter
$7.40
per pieceIn stock
- Side 1
- 1/2" Male JIC
- Side 2
- 5/8" Female BSPP
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/2" Male JIC
Side 25/8" Female BSPP
Thread Type3/4-16 UNF
Tube OD1/2"
Pipe Size5/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationAdapter
StandardSAE J514 / BS 5200 / ISO 228

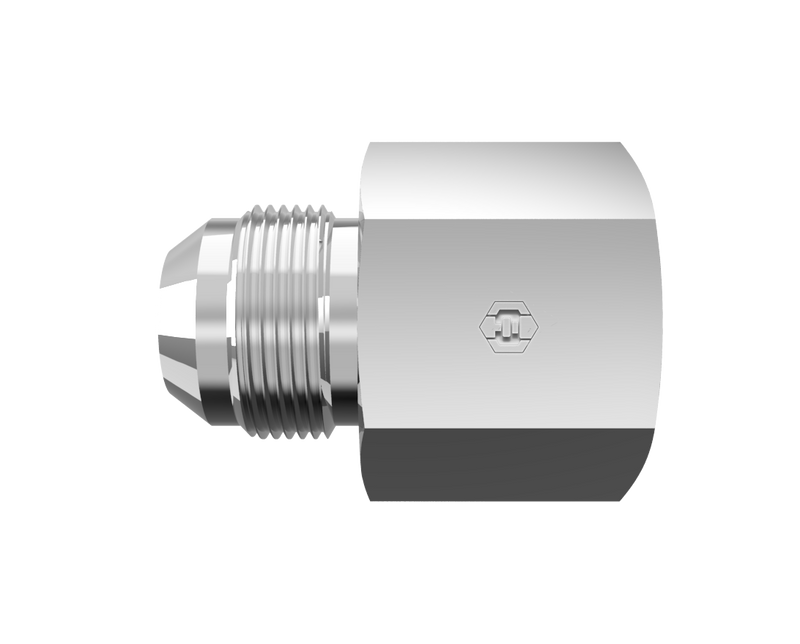

7003-08-10 is a 1/2" Male JIC x 5/8" Female BSPP in the 7003 Series. For connecting a 37° flared tube or line to a female BSPP (parallel) port.
Specifications
| Part Number | 7003-08-10 |
|---|---|
| Series | 7003 |
| Product Type | Adapter |
| Side 1 Connection | 1/2" Male JIC |
| Side 2 Connection | 5/8" Female BSPP |
| Tube OD | 1/2" |
| Pipe Size (Side 2) | 5/8" |
| Thread Type (Side 1) | 3/4-16 UNF |
| Thread Type (Side 2) | 3/4-16 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | BS 5200 / ISO 228 |
| Weight | 0.29 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/2" Male JIC
- Thread3/4-16 UNF
- Tube OD1/2"
- StandardSAE J514 - Class 2A Thread
Side 2
5/8" Female BSPP
- Thread3/4-16 UNF
- Pipe Size5/8"
- StandardBS 5200 / ISO 228
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationAdapter
- Weight0.29 lb
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 8-10G4MXS | 7003-08-10 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
