7003

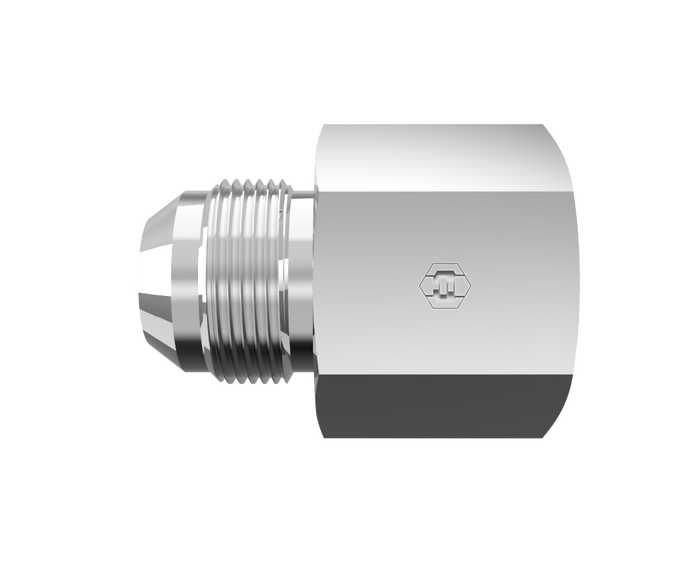

7003 joins a male JIC 37° flare tube end to a female BSPP parallel port end in a straight adapter, giving a fixed threaded outlet for ISO 1179 hardware.
- Shape
- Straight Adapter
- Side 1
- Male JIC
- Side 2
- Female BSPP
- Standard
- SAE J514 - Class 2A Thread / BS 5200 / ISO 228
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 25 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 7003-04-02 | 1/4" Male JIC | 1/8" Female BSPP | 7/16-20 UNF | Steel | Trivalent Zinc | $11.38 | In stock | View |
| 7003-04-04 | 1/4" Male JIC | 1/4" Female BSPP | 7/16-20 UNF | Steel | Trivalent Zinc | $14.88 | In stock | View |
| 7003-04-06 | 1/4" Male JIC | 3/8" Female BSPP | 7/16-20 UNF | Steel | Trivalent Zinc | $10.29 | In stock | View |
| 7003-04-08 | 1/4" Male JIC | 1/2" Female BSPP | 7/16-20 UNF | Steel | Trivalent Zinc | $32.94 | In stock | View |
| 7003-05-02 | 5/16" Male JIC | 1/8" Female BSPP | 1/2-20 UNF | Steel | Trivalent Zinc | $44.10 | In stock | View |
| 7003-05-04 | 5/16" Male JIC | 1/4" Female BSPP | 1/2-20 UNF | Steel | Trivalent Zinc | $34.86 | In stock | View |
| 7003-06-04 | 3/8" Male JIC | 1/4" Female BSPP | 9/16-18 UNF | Steel | Trivalent Zinc | $16.52 | In stock | View |
| 7003-06-06 | 3/8" Male JIC | 3/8" Female BSPP | 9/16-18 UNF | Steel | Trivalent Zinc | $21.28 | In stock | View |
| 7003-06-08 | 3/8" Male JIC | 1/2" Female BSPP | 9/16-18 UNF | Steel | Trivalent Zinc | $20.62 | In stock | View |
| 7003-08-06 | 1/2" Male JIC | 3/8" Female BSPP | 3/4-16 UNF | Steel | Trivalent Zinc | $21.77 | In stock | View |
| 7003-08-08 | 1/2" Male JIC | 1/2" Female BSPP | 3/4-16 UNF | Steel | Trivalent Zinc | $25.17 | In stock | View |
| 7003-08-10 | 1/2" Male JIC | 5/8" Female BSPP | 3/4-16 UNF | Steel | Trivalent Zinc | $25.90 | In stock | View |
| 7003-08-12 | 1/2" Male JIC | 3/4" Female BSPP | 3/4-16 UNF | Steel | Trivalent Zinc | $29.12 | In stock | View |
| 7003-10-06 | 5/8" Male JIC | 3/8" Female BSPP | 7/8-14 UNF | Steel | Trivalent Zinc | $38.60 | In stock | View |
| 7003-10-08 | 5/8" Male JIC | 1/2" Female BSPP | 7/8-14 UNF | Steel | Trivalent Zinc | $30.21 | In stock | View |
| 7003-10-10 | 5/8" Male JIC | 5/8" Female BSPP | 7/8-14 UNF | Steel | Trivalent Zinc | $30.56 | In stock | View |
| 7003-10-12 | 5/8" Male JIC | 3/4" Female BSPP | 7/8-14 UNF | Steel | Trivalent Zinc | $32.90 | In stock | View |
| 7003-12-08 | 3/4" Male JIC | 1/2" Female BSPP | 1-1/16-12 UN | Steel | Trivalent Zinc | $31.89 | In stock | View |
| 7003-12-12 | 3/4" Male JIC | 3/4" Female BSPP | 1-1/16-12 UN | Steel | Trivalent Zinc | $33.60 | In stock | View |
| 7003-12-16 | 3/4" Male JIC | 1" Female BSPP | 1-1/16-12 UN | Steel | Trivalent Zinc | $103.29 | In stock | View |
| 7003-16-12 | 1" Male JIC | 3/4" Female BSPP | 1-5/16-12 UN | Steel | Trivalent Zinc | $90.37 | In stock | View |
| 7003-16-16 | 1" Male JIC | 1" Female BSPP | 1-5/16-12 UN | Steel | Trivalent Zinc | $67.38 | In stock | View |
| 7003-20-20 | 1-1/4" Male JIC | 1-1/4" Female BSPP | 1-5/8-12 UN | Steel | Trivalent Zinc | $91.14 | In stock | View |
| 7003-24-24 | 1-1/2" Male JIC | 1-1/2" Female BSPP | 1-7/8-12 UN | Steel | Trivalent Zinc | $175.80 | In stock | View |
| 7003-32-32 | 2" Male JIC | 2" Female BSPP | 2-1/2-12 UN | Steel | Trivalent Zinc | $207.48 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
