7003-32-32

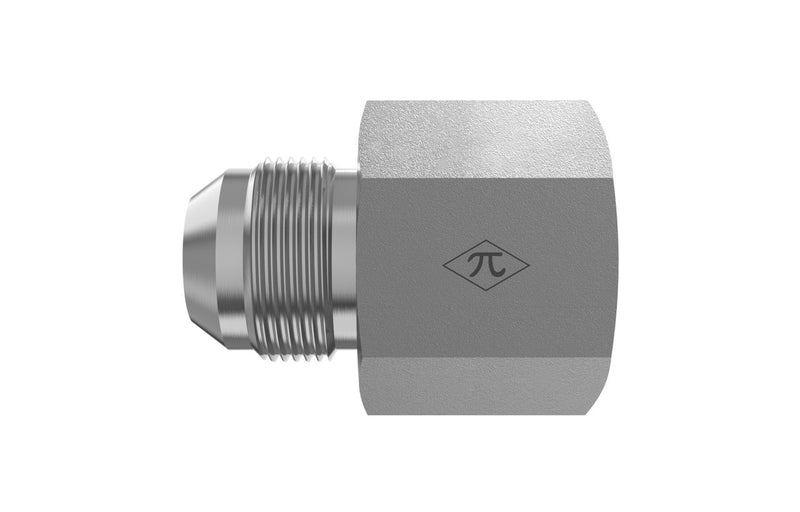

2" Male JIC x 2" Female BSPP · Adapter
$59.28
per pieceIn stock
- Side 1
- 2" Male JIC
- Side 2
- 2" Female BSPP
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Side 22" Female BSPP
Thread Type2-1/2-12 UN
Tube OD2"
Pipe Size2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationAdapter
StandardSAE J514 / BS 5200 / ISO 228

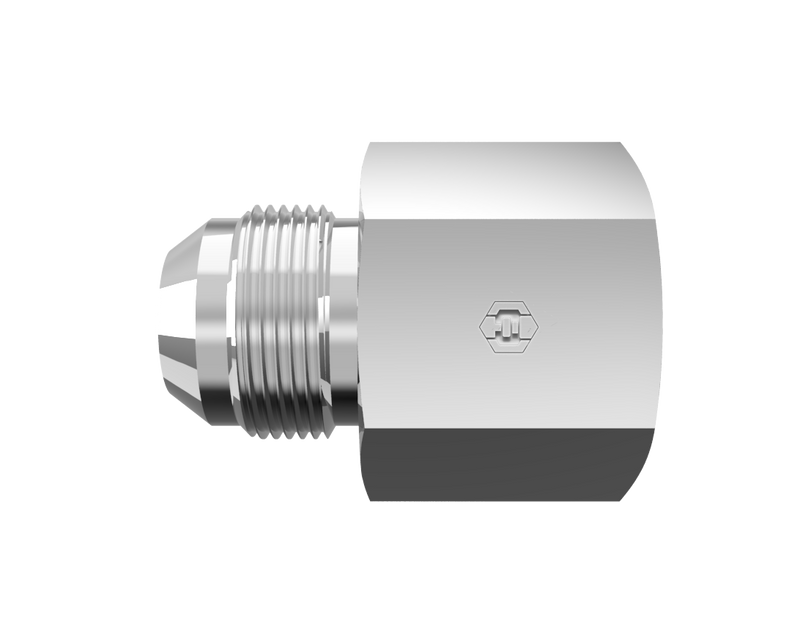

7003-32-32 is a 2" Male JIC x 2" Female BSPP in the 7003 Series. For connecting a 37° flared tube or line to a female BSPP (parallel) port.
Specifications
| Part Number | 7003-32-32 |
|---|---|
| Series | 7003 |
| Product Type | Adapter |
| Side 1 Connection | 2" Male JIC |
| Side 2 Connection | 2" Female BSPP |
| Tube OD | 2" |
| Pipe Size (Side 2) | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | BS 5200 / ISO 228 |
| Weight | 1.78 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2" Female BSPP
- Thread2-1/2-12 UN
- Pipe Size2"
- StandardBS 5200 / ISO 228
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationAdapter
- Weight1.78 lb
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 32G4MXS | 7003-32-32 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
