7003-12-08

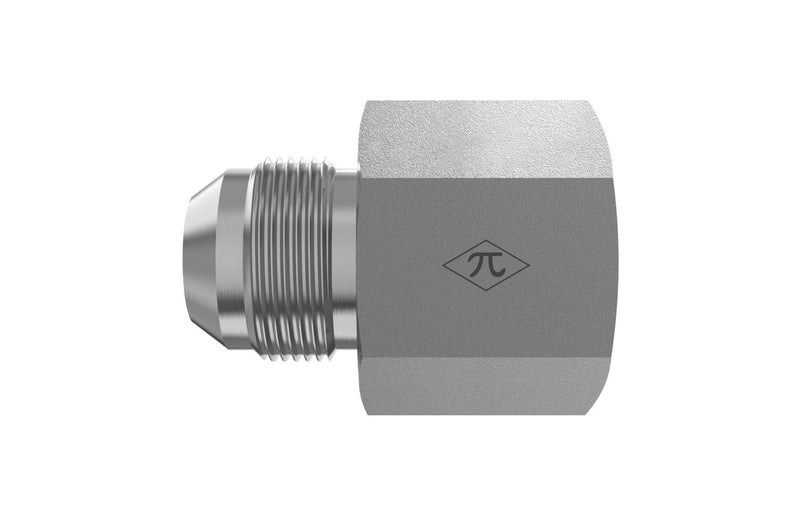

3/4" Male JIC x 1/2" Female BSPP · Adapter
$9.11
per pieceIn stock
- Side 1
- 3/4" Male JIC
- Side 2
- 1/2" Female BSPP
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Male JIC
Side 21/2" Female BSPP
Thread Type1-1/16-12 UN
Tube OD3/4"
Pipe Size1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationAdapter
StandardSAE J514 / BS 5200 / ISO 228

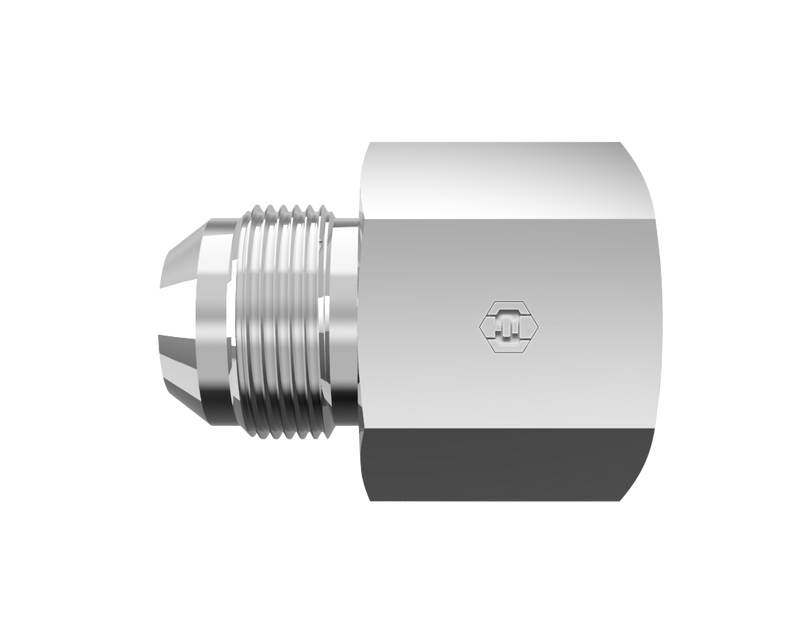

7003-12-08 is a 3/4" Male JIC x 1/2" Female BSPP in the 7003 Series. For connecting a 37° flared tube or line to a female BSPP (parallel) port.
Specifications
| Part Number | 7003-12-08 |
|---|---|
| Series | 7003 |
| Product Type | Adapter |
| Side 1 Connection | 3/4" Male JIC |
| Side 2 Connection | 1/2" Female BSPP |
| Tube OD | 3/4" |
| Pipe Size (Side 2) | 1/2" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | BS 5200 / ISO 228 |
| Weight | 0.36 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Male JIC
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1/2" Female BSPP
- Thread1-1/16-12 UN
- Pipe Size1/2"
- StandardBS 5200 / ISO 228
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationAdapter
- Weight0.36 lb
