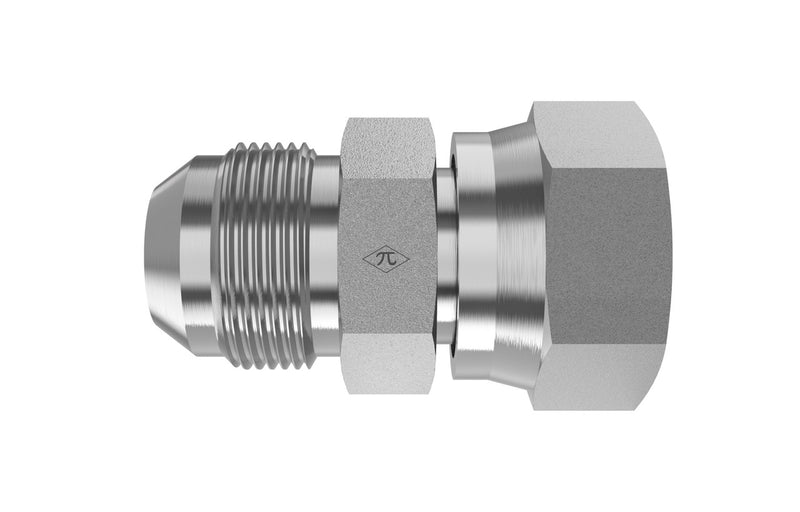

7004-04-02-SS
1/4" Male JIC x 1/8" Female BSPP Swivel · Adapter
$16.35
per pieceIn stock
- Side 1
- 1/4" Male JIC
- Side 2
- 1/8" Female BSPP Swivel
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male JIC
Side 21/8" Female BSPP Swivel
Thread Type7/16-20 UNF
Tube OD1/4"
Pipe Size1/8"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationAdapter
StandardSAE J514 / BS 5200 / ISO 228

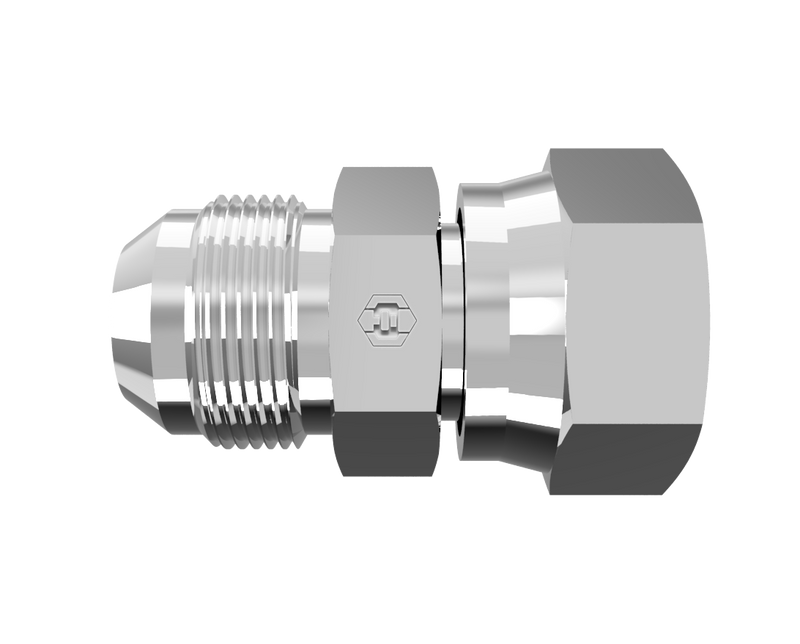

7004-04-02-SS is a 1/4" Male JIC x 1/8" Female BSPP Swivel in the 7004 Series. For connecting a 37° flared tube or line to a BSPP (parallel) line connection using a swivel for easy installation alignment.
Specifications
| Part Number | 7004-04-02-SS |
|---|---|
| Series | 7004 |
| Product Type | Adapter |
| Side 1 Connection | 1/4" Male JIC |
| Side 2 Connection | 1/8" Female BSPP Swivel |
| Tube OD | 1/4" |
| Pipe Size (Side 2) | 1/8" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | BS 5200 / ISO 228 |
| Weight | 0.06 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male JIC
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1/8" Female BSPP Swivel
- Thread7/16-20 UNF
- Pipe Size1/8"
- StandardBS 5200 / ISO 228
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationAdapter
- Weight0.06 lb
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 4-2XHMK46SS | 7004-04-02-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
