7004

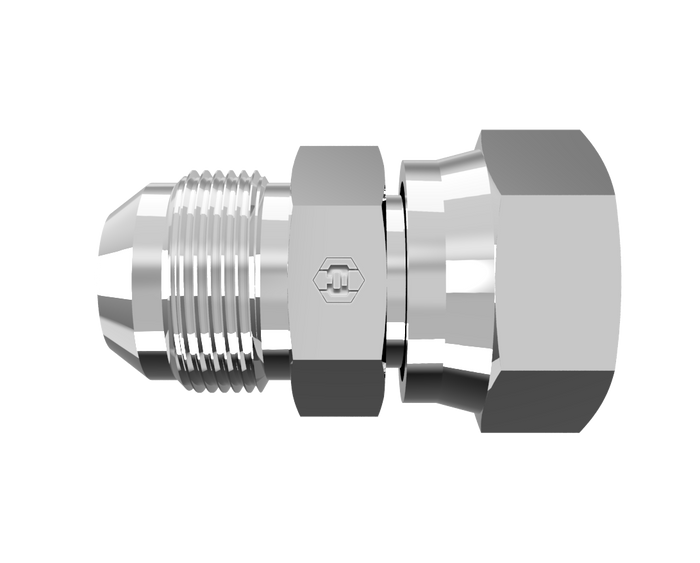

7004 terminates a male JIC 37° flare tube end at a female BSPP parallel swivel end in a straight adapter, letting the swivel nut spin for alignment before final torque.
- Shape
- Straight Adapter
- Side 1
- Male JIC
- Side 2
- Female BSPP Swivel
- Standard
- SAE J514 - Class 2A Thread / BS 5200 / ISO 228
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 27 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 7004-04-02 | 1/4" Male JIC | 1/8" Female BSPP Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $11.20 | In stock | View |
| 7004-04-04 | 1/4" Male JIC | 1/4" Female BSPP Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $11.38 | In stock | View |
| 7004-04-06 | 1/4" Male JIC | 3/8" Female BSPP Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $14.60 | In stock | View |
| 7004-04-08 | 1/4" Male JIC | 1/2" Female BSPP Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $26.60 | In stock | View |
| 7004-05-04 | 5/16" Male JIC | 1/4" Female BSPP Swivel | 1/2-20 UNF | Steel | Trivalent Zinc | $28.70 | In stock | View |
| 7004-05-06 | 5/16" Male JIC | 3/8" Female BSPP Swivel | 1/2-20 UNF | Steel | Trivalent Zinc | $16.06 | In stock | View |
| 7004-05-08 | 5/16" Male JIC | 1/2" Female BSPP Swivel | 1/2-20 UNF | Steel | Trivalent Zinc | $38.12 | In stock | View |
| 7004-06-04 | 3/8" Male JIC | 1/4" Female BSPP Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $14.84 | In stock | View |
| 7004-06-06 | 3/8" Male JIC | 3/8" Female BSPP Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $14.94 | In stock | View |
| 7004-06-08 | 3/8" Male JIC | 1/2" Female BSPP Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $15.68 | In stock | View |
| 7004-08-06 | 1/2" Male JIC | 3/8" Female BSPP Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $16.70 | In stock | View |
| 7004-08-08 | 1/2" Male JIC | 1/2" Female BSPP Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $18.66 | In stock | View |
| 7004-08-10 | 1/2" Male JIC | 5/8" Female BSPP Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $25.97 | In stock | View |
| 7004-08-12 | 1/2" Male JIC | 3/4" Female BSPP Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $33.28 | In stock | View |
| 7004-10-06 | 5/8" Male JIC | 3/8" Female BSPP Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $26.88 | In stock | View |
| 7004-10-08 | 5/8" Male JIC | 1/2" Female BSPP Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $24.33 | In stock | View |
| 7004-10-10 | 5/8" Male JIC | 5/8" Female BSPP Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $38.75 | In stock | View |
| 7004-10-12 | 5/8" Male JIC | 3/4" Female BSPP Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $35.46 | In stock | View |
| 7004-12-08 | 3/4" Male JIC | 1/2" Female BSPP Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $47.60 | In stock | View |
| 7004-12-12 | 3/4" Male JIC | 3/4" Female BSPP Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $30.66 | In stock | View |
| 7004-12-16 | 3/4" Male JIC | 1" Female BSPP Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $42.91 | In stock | View |
| 7004-12-24 | 3/4" Male JIC | 1-1/2" Female BSPP Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $176.68 | In stock | View |
| 7004-16-12 | 1" Male JIC | 3/4" Female BSPP Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $40.85 | In stock | View |
| 7004-16-16 | 1" Male JIC | 1" Female BSPP Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $41.83 | In stock | View |
| 7004-20-20 | 1-1/4" Male JIC | 1-1/4" Female BSPP Swivel | 1-5/8-12 UN | Steel | Trivalent Zinc | $70.46 | In stock | View |
| 7004-24-24 | 1-1/2" Male JIC | 1-1/2" Female BSPP Swivel | 1-7/8-12 UN | Steel | Trivalent Zinc | $89.50 | In stock | View |
| 7004-32-32 | 2" Male JIC | 2" Female BSPP Swivel | 2-1/2-12 UN | Steel | Trivalent Zinc | $201.74 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
