7004-10-06

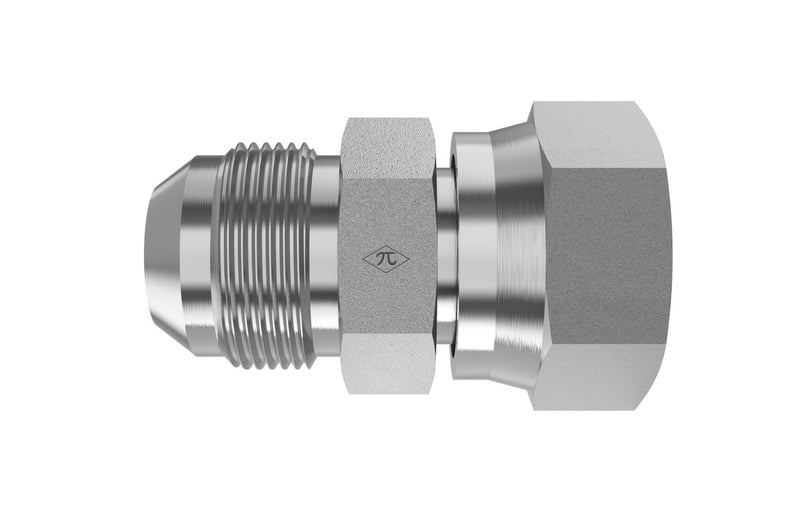

5/8" Male JIC x 3/8" Female BSPP Swivel · Adapter
$7.68
per pieceIn stock
- Side 1
- 5/8" Male JIC
- Side 2
- 3/8" Female BSPP Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/8" Male JIC
Side 23/8" Female BSPP Swivel
Thread Type7/8-14 UNF
Tube OD5/8"
Pipe Size3/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationAdapter
StandardSAE J514 / BS 5200 / ISO 228

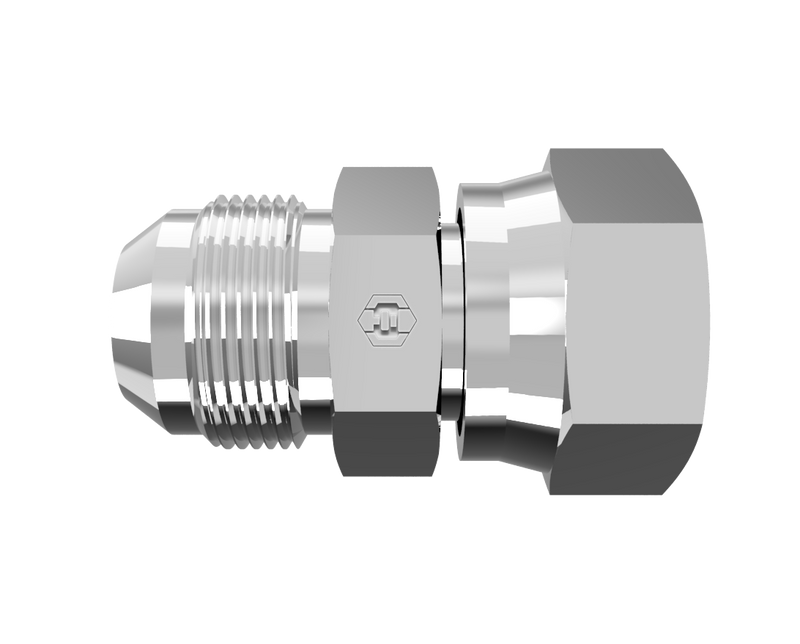

7004-10-06 is a 5/8" Male JIC x 3/8" Female BSPP Swivel in the 7004 Series. For connecting a 37° flared tube or line to a BSPP (parallel) line connection using a swivel for easy installation alignment.
Specifications
| Part Number | 7004-10-06 |
|---|---|
| Series | 7004 |
| Product Type | Adapter |
| Side 1 Connection | 5/8" Male JIC |
| Side 2 Connection | 3/8" Female BSPP Swivel |
| Tube OD | 5/8" |
| Pipe Size (Side 2) | 3/8" |
| Thread Type (Side 1) | 7/8-14 UNF |
| Thread Type (Side 2) | 7/8-14 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | BS 5200 / ISO 228 |
| Weight | 0.16 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/8" Male JIC
- Thread7/8-14 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2A Thread
Side 2
3/8" Female BSPP Swivel
- Thread7/8-14 UNF
- Pipe Size3/8"
- StandardBS 5200 / ISO 228
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationAdapter
- Weight0.16 lb
