7004-12-24

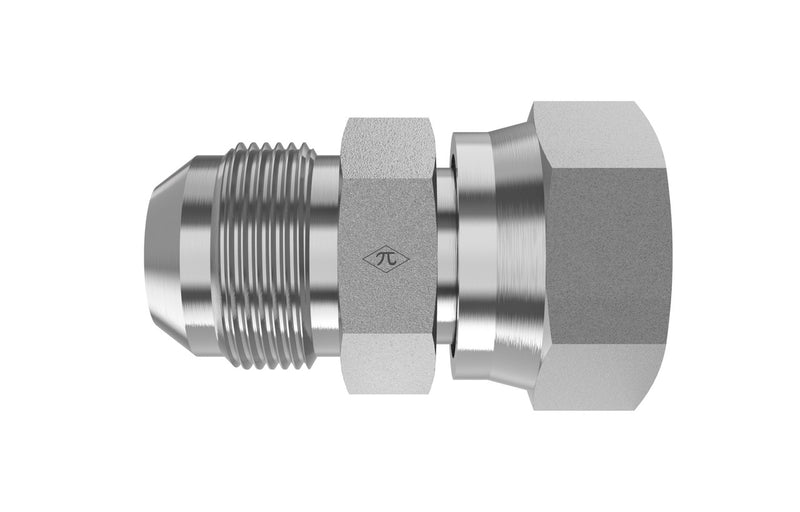

3/4" Male JIC x 1-1/2" Female BSPP Swivel · Adapter
$50.48
per pieceIn stock
- Side 1
- 3/4" Male JIC
- Side 2
- 1-1/2" Female BSPP Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Male JIC
Side 21-1/2" Female BSPP Swivel
Thread Type1-1/16-12 UN
Tube OD3/4"
Pipe Size1-1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationAdapter
StandardSAE J514 / BS 5200 / ISO 228

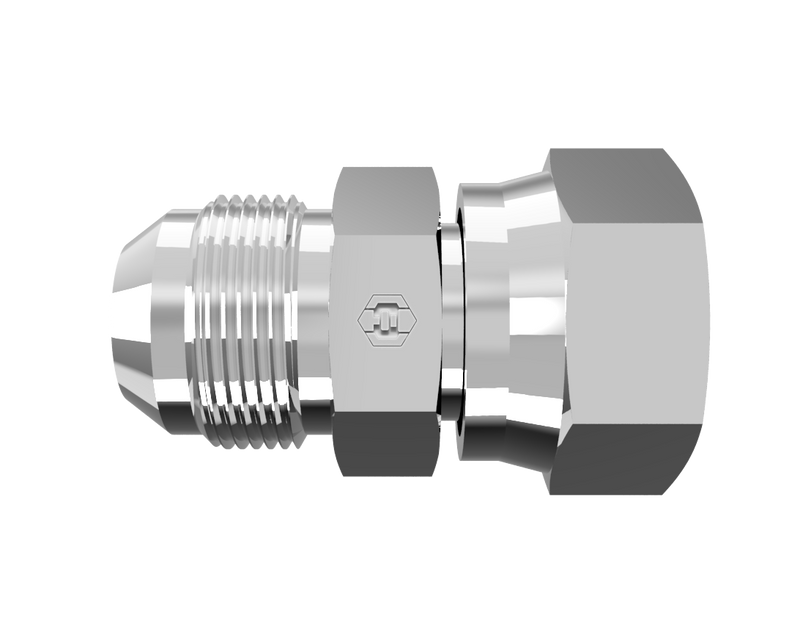

7004-12-24 is a 3/4" Male JIC x 1-1/2" Female BSPP Swivel in the 7004 Series. For connecting a 37° flared tube or line to a BSPP (parallel) line connection using a swivel for easy installation alignment.
Specifications
| Part Number | 7004-12-24 |
|---|---|
| Series | 7004 |
| Product Type | Adapter |
| Side 1 Connection | 3/4" Male JIC |
| Side 2 Connection | 1-1/2" Female BSPP Swivel |
| Tube OD | 3/4" |
| Pipe Size (Side 2) | 1-1/2" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | BS 5200 / ISO 228 |
| Weight | 0.90 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Male JIC
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1-1/2" Female BSPP Swivel
- Thread1-1/16-12 UN
- Pipe Size1-1/2"
- StandardBS 5200 / ISO 228
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationAdapter
- Weight0.90 lb
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 12-24XHMK46S | 7004-12-24 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
