JIC 37° Flare Fittings · 7009-F family

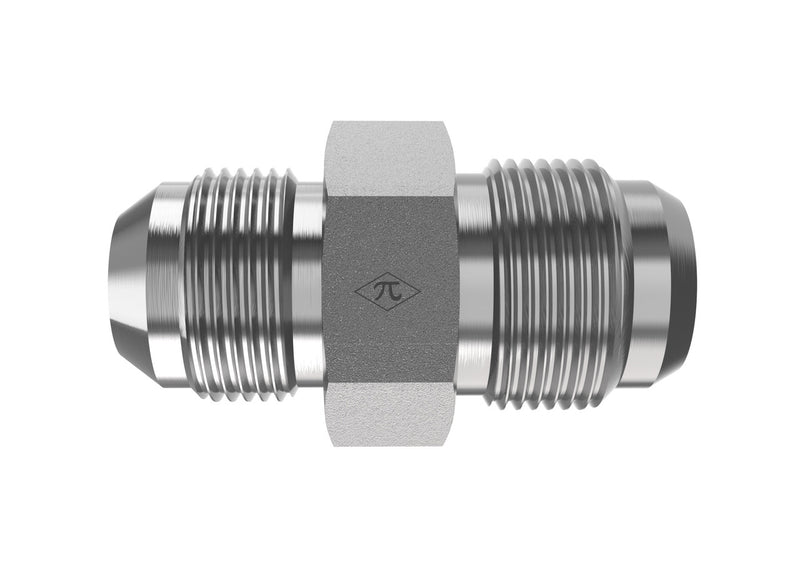

7009-F-16-33
1" Male JIC x 33 Female Komatsu · Straight
$17.66
per pieceIn stock
- Side 1
- 1" Male JIC
- Side 2
- 33 Female Komatsu
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" Male JIC
Side 233 Female Komatsu
Thread Type1-5/16-12 UN
Tube OD1"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight
StandardSAE J514
7009-F-16-33 is a 1" Male JIC x 33 Female Komatsu in the 7009-F Series. SAE J514 37° Flare Female Komatsu Adapter.
Specifications
| Part Number | 7009-F-16-33 |
|---|---|
| Series | 7009-F |
| Product Type | Straight |
| Side 1 Connection | 1" Male JIC |
| Side 2 Connection | 33 Female Komatsu |
| Tube OD | 1" |
| Thread Type (Side 1) | 1-5/16-12 UN |
| Thread Type (Side 2) | 1-5/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 |
| Weight | 0.59 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" Male JIC
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514
Side 2
33 Female Komatsu
- Thread1-5/16-12 UN
- StandardSAE J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight
- Weight0.59 lb
Product Family
CategoryJIC 37° Flare Fittings
Family7009-F
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 16-16XHMKA6S | 7009-F-16-33 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
