7100-08-08-FG
1/2" Male JIC x 1/2" Male BSPT · Male Elbow
$7.11
per pieceIn stock
- Side 1
- 1/2" Male JIC
- Side 2
- 1/2" Male BSPT
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/2" Male JIC
Side 21/2" Male BSPT
Thread Type3/4-16 UNF
Tube OD1/2"
Pipe Size1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationMale Elbow
StandardSAE J514 / ISO 7/1 (BSPT)

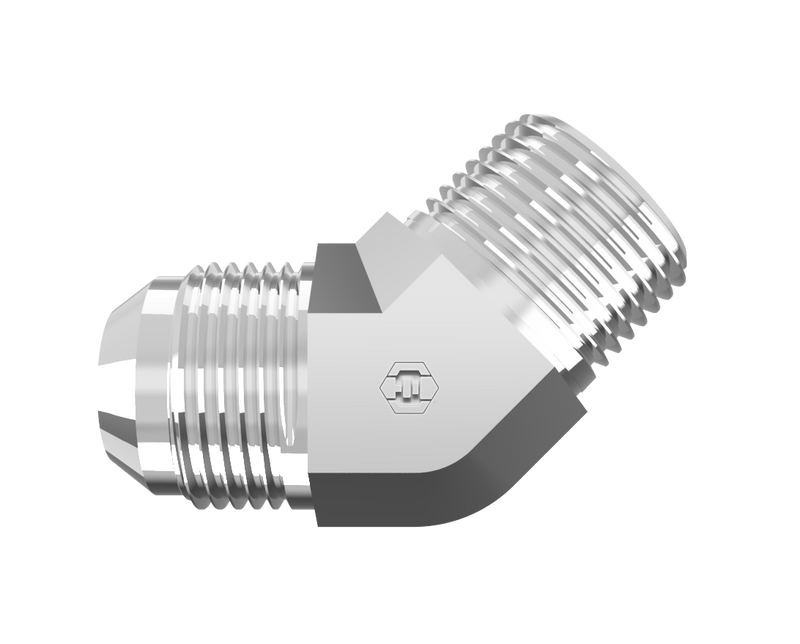

7100-08-08-FG is a 1/2" Male JIC x 1/2" Male BSPT in the 7100-FG Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe at a 45° angle.
Specifications
| Part Number | 7100-08-08-FG |
|---|---|
| Series | 7100-FG |
| Product Type | Male Elbow |
| Side 1 Connection | 1/2" Male JIC |
| Side 2 Connection | 1/2" Male BSPT |
| Tube OD | 1/2" |
| Pipe Size (Side 2) | 1/2" |
| Thread Type (Side 1) | 3/4-16 UNF |
| Thread Type (Side 2) | 3/4-16 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | ISO 7/1 (BSPT) |
| Weight | 0.21 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/2" Male JIC
- Thread3/4-16 UNF
- Tube OD1/2"
- StandardSAE J514 - Class 2A Thread
Side 2
1/2" Male BSPT
- Thread3/4-16 UNF
- Pipe Size1/2"
- StandardISO 7/1 (BSPT)
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationMale Elbow
- Weight0.21 lb
Product Family
CategoryBSP Fittings
Family7100-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | GG210-NP08-08 | 7100-08-08-FG |
| Parker (Triple-Lok / TFD) | 8-8V3MXS | 7100-08-08-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
