7100-FG

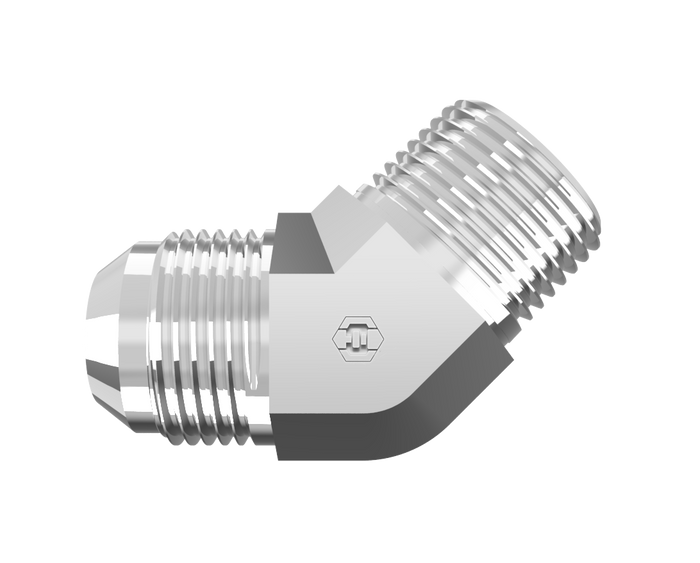

7100-FG routes a male JIC 37° flare tube end into a male BSPT tapered pipe end in a 45-degree elbow with a forged one-piece body.
- Shape
- Elbow, Male
- Side 1
- Male JIC
- Side 2
- Male BSPT
- Standard
- SAE J514 - Class 2A Thread / ISO 7/1 (BSPT)
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 15 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 7100-04-02-FG | 1/4" Male JIC | 1/8" Male BSPT | 7/16-20 UNF | Steel | Trivalent Zinc | $9.84 | In stock | View |
| 7100-04-04-FG | 1/4" Male JIC | 1/4" Male BSPT | 7/16-20 UNF | Steel | Trivalent Zinc | $8.44 | In stock | View |
| 7100-06-04-FG | 3/8" Male JIC | 1/4" Male BSPT | 9/16-18 UNF | Steel | Trivalent Zinc | $13.27 | In stock | View |
| 7100-06-06-FG | 3/8" Male JIC | 3/8" Male BSPT | 9/16-18 UNF | Steel | Trivalent Zinc | $26.67 | In stock | View |
| 7100-06-08-FG | 3/8" Male JIC | 1/2" Male BSPT | 9/16-18 UNF | Steel | Trivalent Zinc | $17.19 | In stock | View |
| 7100-08-04-FG | 1/2" Male JIC | 1/4" Male BSPT | 3/4-16 UNF | Steel | Trivalent Zinc | $28.42 | In stock | View |
| 7100-08-06-FG | 1/2" Male JIC | 3/8" Male BSPT | 3/4-16 UNF | Steel | Trivalent Zinc | $28.84 | In stock | View |
| 7100-08-08-FG | 1/2" Male JIC | 1/2" Male BSPT | 3/4-16 UNF | Steel | Trivalent Zinc | $24.89 | In stock | View |
| 7100-10-08-FG | 5/8" Male JIC | 1/2" Male BSPT | 7/8-14 UNF | Steel | Trivalent Zinc | $50.47 | In stock | View |
| 7100-12-12-FG | 3/4" Male JIC | 3/4" Male BSPT | 1-1/16-12 UN | Steel | Trivalent Zinc | $42.91 | In stock | View |
| 7100-16-12-FG | 1" Male JIC | 3/4" Male BSPT | 1-5/16-12 UN | Steel | Trivalent Zinc | $155.92 | In stock | View |
| 7100-16-16-FG | 1" Male JIC | 1" Male BSPT | 1-5/16-12 UN | Steel | Trivalent Zinc | $109.55 | In stock | View |
| 7100-20-20-FG | 1-1/4" Male JIC | 1-1/4" Male BSPT | 1-5/8-12 UN | Steel | Trivalent Zinc | $271.15 | In stock | View |
| 7100-24-24-FG | 1-1/2" Male JIC | 1-1/2" Male BSPT | 1-7/8-12 UN | Steel | Trivalent Zinc | $379.58 | In stock | View |
| 7100-32-32-FG | 2" Male JIC | 2" Male BSPT | 2-1/2-12 UN | Steel | Trivalent Zinc | $569.38 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
