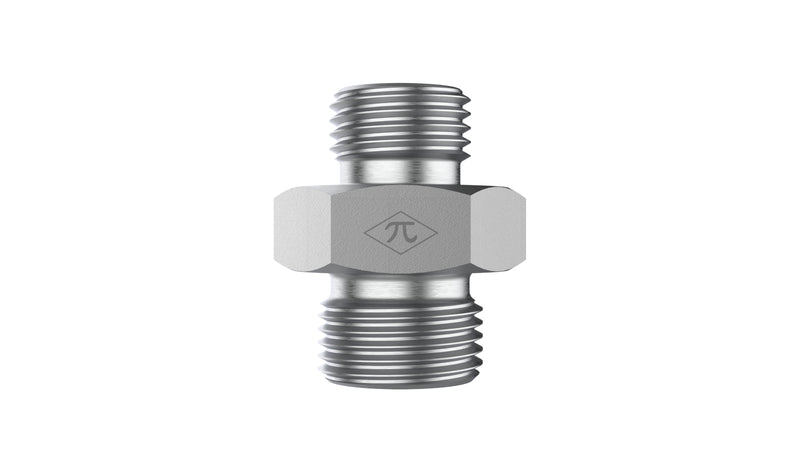

FS2403-12-12-SS-VITON
3/4" Male ORFS x 3/4" Male ORFS · Union
$49.22
per pieceIn stock
- Side 1
- 3/4" Male ORFS
- Side 2
- 3/4" Male ORFS
- Material
- Stainless Steel
- Thread
- 1-3/16-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Male ORFS
Side 23/4" Male ORFS
Thread Type1-3/16-12 UN
Tube OD3/4"
MaterialStainless Steel
ConfigurationUnion
StandardSAE J1453
FS2403-12-12-SS-VITON is a 3/4" Male ORFS x 3/4" Male ORFS in the FS2403 Series. For connecting two ORFS-sealed tubes or lines in a straight configuration.
Specifications
| Part Number | FS2403-12-12-SS-VITON |
|---|---|
| Series | FS2403 |
| Product Type | Union |
| Side 1 Connection | 3/4" Male ORFS |
| Side 2 Connection | 3/4" Male ORFS |
| Tube OD (Side 1) | 3/4" |
| Thread Type (Side 1) | 1-3/16-12 UN |
| Thread Type (Side 2) | 1-3/16-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J1453 - O-Ring Face Seal |
| Weight | 0.43 lb |
| Category | ORFS Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Male ORFS
- Thread1-3/16-12 UN
- Tube OD3/4"
- StandardSAE J1453 - O-Ring Face Seal
Side 2
3/4" Male ORFS
- Thread1-3/16-12 UN
- Tube OD3/4"
- StandardSAE J1453 - O-Ring Face Seal
Construction
- MaterialStainless Steel
- ConfigurationUnion
- Weight0.43 lb
Product Family
CategoryORFS Fittings
FamilyFS2403
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-FF2000T1212-213 | FS2403-12-12-SS-VITON |
| Parker (Triple-Lok / TFD) | 12 HLO-SS FKM | FS2403-12-12-SS-VITON |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
