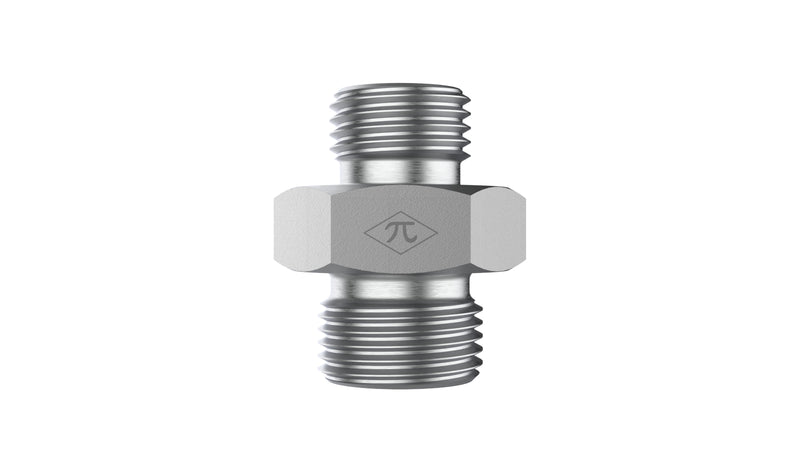

FS2403-08-06-SS
1/2" Male ORFS x 3/8" Male ORFS · Union
$18.09
per pieceIn stock
- Side 1
- 1/2" Male ORFS
- Side 2
- 3/8" Male ORFS
- Material
- Stainless Steel
- Thread
- 13/16-16 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/2" Male ORFS
Side 23/8" Male ORFS
Thread Type13/16-16 UNF
Tube OD1/2" × 3/8"
MaterialStainless Steel
ConfigurationUnion
StandardSAE J1453
FS2403-08-06-SS is a 1/2" Male ORFS x 3/8" Male ORFS in the FS2403 Series. For connecting two ORFS-sealed tubes or lines in a straight configuration.
Specifications
| Part Number | FS2403-08-06-SS |
|---|---|
| Series | FS2403 |
| Product Type | Union |
| Side 1 Connection | 1/2" Male ORFS |
| Side 2 Connection | 3/8" Male ORFS |
| Tube OD (Side 1 / Side 2) | 1/2" / 3/8" |
| Thread Type (Side 1) | 13/16-16 UNF |
| Thread Type (Side 2) | 13/16-16 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J1453 - O-Ring Face Seal |
| Weight | 0.16 lb |
| Category | ORFS Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/2" Male ORFS
- Thread13/16-16 UNF
- Tube OD1/2"
- StandardSAE J1453 - O-Ring Face Seal
Side 2
3/8" Male ORFS
- Thread13/16-16 UNF
- Tube OD3/8"
- StandardSAE J1453 - O-Ring Face Seal
Construction
- MaterialStainless Steel
- ConfigurationUnion
- Weight0.16 lb
Product Family
CategoryORFS Fittings
FamilyFS2403
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-FF2000T0806 | FS2403-08-06-SS |
| Parker (Triple-Lok / TFD) | 8-6 HLO-SS | FS2403-08-06-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
