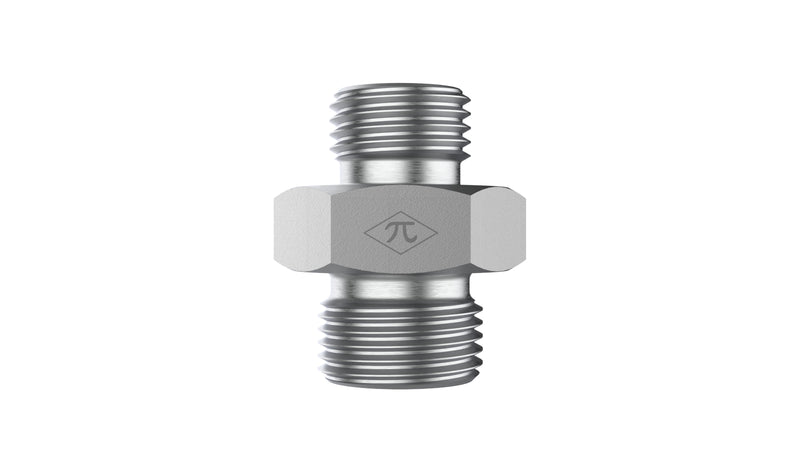

FS2403-12-08
3/4" Male ORFS x 1/2" Male ORFS · Straight Union
$16.38
per pieceIn stock
- Side 1
- 3/4" Male ORFS
- Side 2
- 1/2" Male ORFS
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Male ORFS
Side 21/2" Male ORFS
Thread Type1-3/16-12 UN
Tube OD3/4" × 1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight Union
StandardSAE J1453
FS2403-12-08 is a 3/4" Male ORFS x 1/2" Male ORFS in the FS2403 Series. FS2403 is a straight union with a male ORFS face-seal tube end on each side, mating two female ORFS swivel nuts for SAE J1453 face-seal service.
Specifications
| Part Number | FS2403-12-08 |
|---|---|
| Series | FS2403 |
| Product Type | Straight Union |
| Side 1 Connection | 3/4" Male ORFS |
| Side 2 Connection | 1/2" Male ORFS |
| Tube OD (Side 1 / Side 2) | 3/4" / 1/2" |
| Thread Type (Side 1) | 1-3/16-12 UN |
| Thread Type (Side 2) | 1-3/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J1453 - O-Ring Face Seal |
| Weight | 0.35 lb |
| Category | ORFS Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Male ORFS
- Thread1-3/16-12 UN
- Tube OD3/4"
- StandardSAE J1453 - O-Ring Face Seal
Side 2
1/2" Male ORFS
- Thread1-3/16-12 UN
- Tube OD1/2"
- StandardSAE J1453 - O-Ring Face Seal
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight Union
- Weight0.35 lb
Product Family
CategoryORFS Fittings
FamilyFS2403
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Aeroquip | FF2000T1208S | FS2403-12-08 |
| Parker (Triple-Lok / TFD) | 12-8 HLO-S | FS2403-12-08 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
