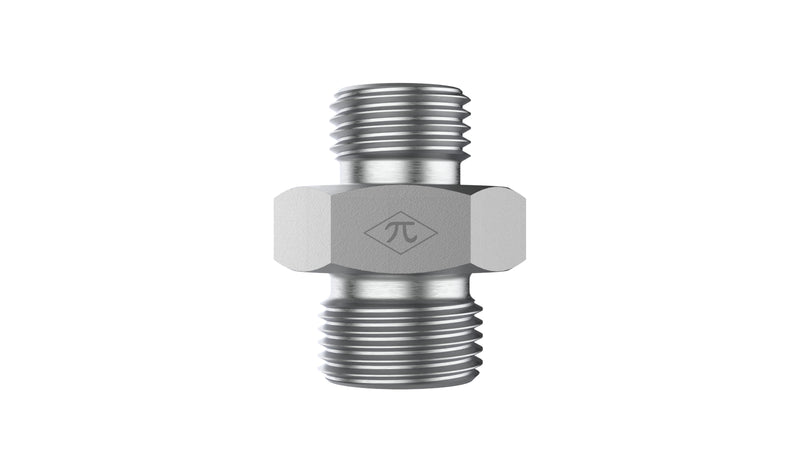

FS2403-06-04
3/8" Male ORFS x 1/4" Male ORFS · Straight Union
$5.22
per pieceIn stock
- Side 1
- 3/8" Male ORFS
- Side 2
- 1/4" Male ORFS
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Male ORFS
Side 21/4" Male ORFS
Thread Type11/16-16 UNF
Tube OD3/8" × 1/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight Union
StandardSAE J1453
FS2403-06-04 is a 3/8" Male ORFS x 1/4" Male ORFS in the FS2403 Series. FS2403 is a straight union with a male ORFS face-seal tube end on each side, mating two female ORFS swivel nuts for SAE J1453 face-seal service.
Specifications
| Part Number | FS2403-06-04 |
|---|---|
| Series | FS2403 |
| Product Type | Straight Union |
| Side 1 Connection | 3/8" Male ORFS |
| Side 2 Connection | 1/4" Male ORFS |
| Tube OD (Side 1 / Side 2) | 3/8" / 1/4" |
| Thread Type (Side 1) | 11/16-16 UNF |
| Thread Type (Side 2) | 11/16-16 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J1453 - O-Ring Face Seal |
| Weight | 0.10 lb |
| Category | ORFS Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Male ORFS
- Thread11/16-16 UNF
- Tube OD3/8"
- StandardSAE J1453 - O-Ring Face Seal
Side 2
1/4" Male ORFS
- Thread11/16-16 UNF
- Tube OD1/4"
- StandardSAE J1453 - O-Ring Face Seal
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight Union
- Weight0.10 lb
Product Family
CategoryORFS Fittings
FamilyFS2403
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Aeroquip | FF2000T0604S | FS2403-06-04 |
| Parker (Triple-Lok / TFD) | 6-4 HLO-S | FS2403-06-04 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
