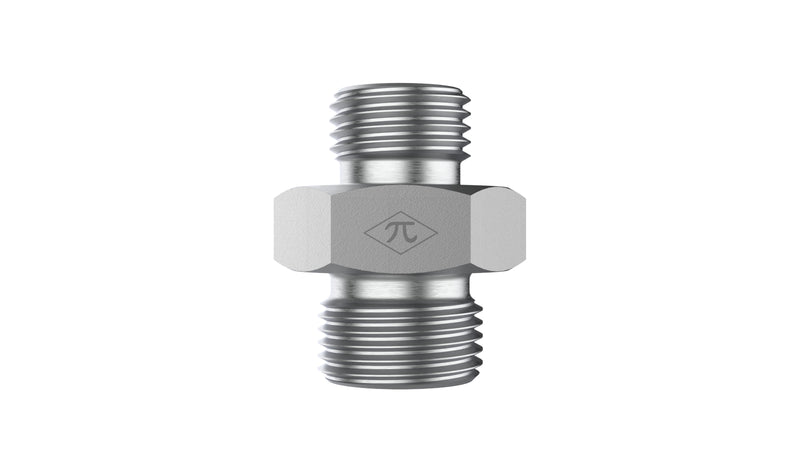

FS2403-20-20-VITON
1-1/4" Male ORFS x 1-1/4" Male ORFS · Union
$11.98
per pieceIn stock
- Side 1
- 1-1/4" Male ORFS
- Side 2
- 1-1/4" Male ORFS
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" Male ORFS
Side 21-1/4" Male ORFS
Thread Type1-11/16-12 UN
Tube OD1-1/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationUnion
StandardSAE J1453
FS2403-20-20-VITON is a 1-1/4" Male ORFS x 1-1/4" Male ORFS in the FS2403 Series. For connecting two ORFS-sealed tubes or lines in a straight configuration.
Specifications
| Part Number | FS2403-20-20-VITON |
|---|---|
| Series | FS2403 |
| Product Type | Union |
| Side 1 Connection | 1-1/4" Male ORFS |
| Side 2 Connection | 1-1/4" Male ORFS |
| Tube OD (Side 1) | 1-1/4" |
| Thread Type (Side 1) | 1-11/16-12 UN |
| Thread Type (Side 2) | 1-11/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J1453 - O-Ring Face Seal |
| Weight | 0.66 lb |
| Category | ORFS Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" Male ORFS
- Thread1-11/16-12 UN
- Tube OD1-1/4"
- StandardSAE J1453 - O-Ring Face Seal
Side 2
1-1/4" Male ORFS
- Thread1-11/16-12 UN
- Tube OD1-1/4"
- StandardSAE J1453 - O-Ring Face Seal
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationUnion
- Weight0.66 lb
Product Family
CategoryORFS Fittings
FamilyFS2403
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | FF2000T2020-213 | FS2403-20-20-VITON |
| Parker (Triple-Lok / TFD) | 20 HLO-S FKM | FS2403-20-20-VITON |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
