7025

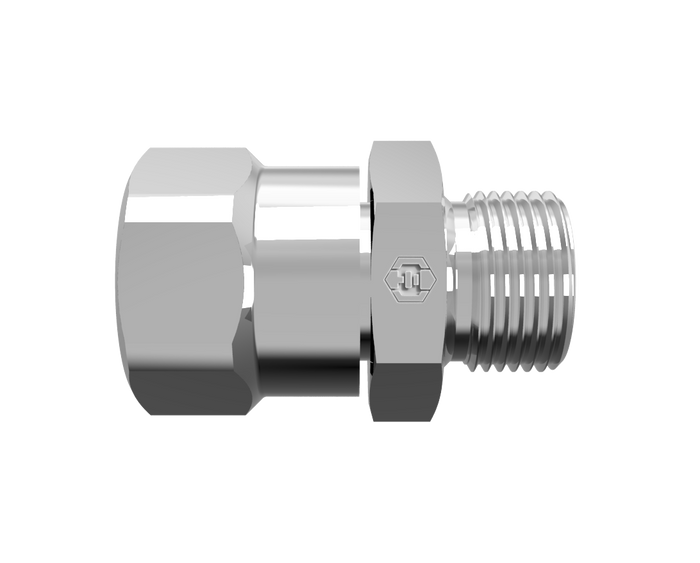

7025 adapts a female JIC 37° swivel end to a male metric 60° cone port end in a straight adapter, the swivel nut easing alignment during installation.
- Shape
- Straight
- Side 1
- Female JIC Swivel
- Side 2
- Male Metric 60° Line/Port
- Standard
- SAE J514 - Class 2B Thread / ISO 9974
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 16 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 7025-04-10 | 1/4" Female JIC Swivel | M10X1.0 Male Metric 60° Line/Port | 7/16-20 UNF | Steel | Trivalent Zinc | $11.90 | In stock | View |
| 7025-04-12 | 1/4" Female JIC Swivel | M12X1.5 Male Metric 60° Line/Port | 7/16-20 UNF | Steel | Trivalent Zinc | $29.85 | In stock | View |
| 7025-05-12 | 5/16" Female JIC Swivel | M12X1.5 Male Metric 60° Line/Port | 1/2-20 UNF | Steel | Trivalent Zinc | $21.42 | In stock | View |
| 7025-06-14 | 3/8" Female JIC Swivel | M14X1.5 Male Metric 60° Line/Port | 9/16-18 UNF | Steel | Trivalent Zinc | $26.01 | In stock | View |
| 7025-06-16 | 3/8" Female JIC Swivel | M16X1.5 Male Metric 60° Line/Port | 9/16-18 UNF | Steel | Trivalent Zinc | $27.20 | In stock | View |
| 7025-06-18 | 3/8" Female JIC Swivel | M18X1.5 Male Metric 60° Line/Port | 9/16-18 UNF | Steel | Trivalent Zinc | $29.05 | In stock | View |
| 7025-06-20 | 3/8" Female JIC Swivel | M20X1.5 Male Metric 60° Line/Port | 9/16-18 UNF | Steel | Trivalent Zinc | $31.50 | In stock | View |
| 7025-06-22 | 3/8" Female JIC Swivel | M22X1.5 Male Metric 60° Line/Port | 9/16-18 UNF | Steel | Trivalent Zinc | $43.26 | In stock | View |
| 7025-08-16 | 1/2" Female JIC Swivel | M16X1.5 Male Metric 60° Line/Port | 3/4-16 UNF | Steel | Trivalent Zinc | $26.36 | In stock | View |
| 7025-08-18 | 1/2" Female JIC Swivel | M18X1.5 Male Metric 60° Line/Port | 3/4-16 UNF | Steel | Trivalent Zinc | $27.65 | In stock | View |
| 7025-08-22 | 1/2" Female JIC Swivel | M22X1.5 Male Metric 60° Line/Port | 3/4-16 UNF | Steel | Trivalent Zinc | $34.44 | In stock | View |
| 7025-10-16 | 5/8" Female JIC Swivel | M16X1.5 Male Metric 60° Line/Port | 7/8-14 UNF | Steel | Trivalent Zinc | $35.32 | In stock | View |
| 7025-10-18 | 5/8" Female JIC Swivel | M18X1.5 Male Metric 60° Line/Port | 7/8-14 UNF | Steel | Trivalent Zinc | $36.68 | In stock | View |
| 7025-10-20 | 5/8" Female JIC Swivel | M20X1.5 Male Metric 60° Line/Port | 7/8-14 UNF | Steel | Trivalent Zinc | $39.79 | In stock | View |
| 7025-10-22 | 5/8" Female JIC Swivel | M22X1.5 Male Metric 60° Line/Port | 7/8-14 UNF | Steel | Trivalent Zinc | $39.94 | In stock | View |
| 7025-12-26 | 3/4" Female JIC Swivel | M26 Male Metric 60° Line/Port | 1-1/16-12 UN | Steel | Trivalent Zinc | $37.38 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
