JIC 37° Flare Fittings · 7025 family

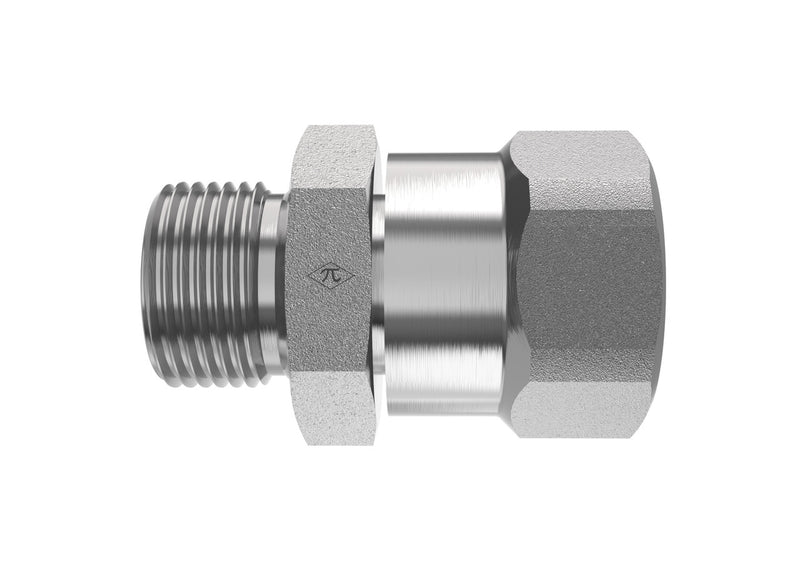

7025-05-12
5/16" Female JIC Swivel x M12X1.5 Male Metric 60° Line/Port · Straight
$6.12
per pieceIn stock
- Side 1
- 5/16" Female JIC Swivel
- Side 2
- M12X1.5 Male Metric 60° Line/Port
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/16" Female JIC Swivel
Side 2M12X1.5 Male Metric 60° Line/Port
Thread Type1/2-20 UNF
Tube OD5/16"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight
StandardSAE J514 / ISO 9974

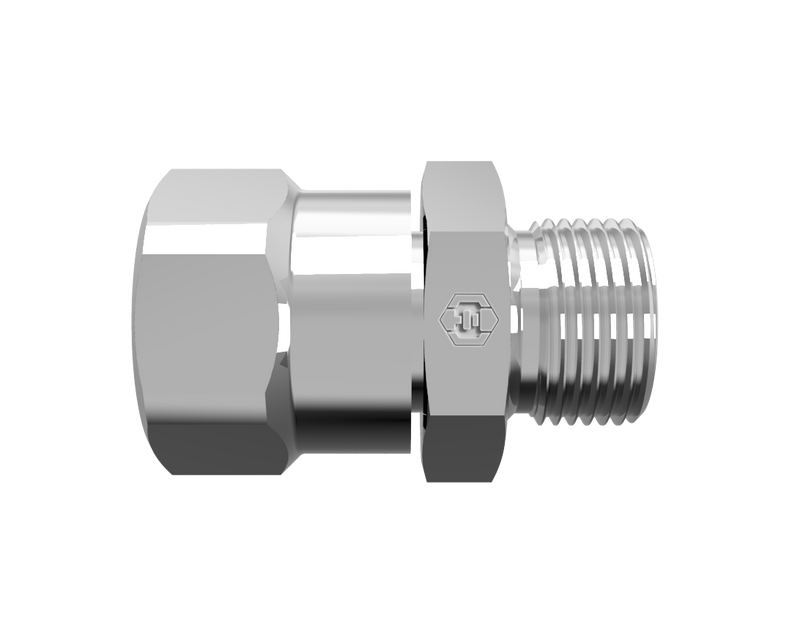

7025-05-12 is a 5/16" Female JIC Swivel x M12X1.5 Male Metric 60° Line/Port in the 7025 Series. For connecting 37° flared tubes or lines to metric port using a swivel for alignment.
Specifications
| Part Number | 7025-05-12 |
|---|---|
| Series | 7025 |
| Product Type | Straight |
| Side 1 Connection | 5/16" Female JIC Swivel |
| Side 2 Connection | M12X1.5 Male Metric 60° Line/Port |
| Tube OD | 5/16" |
| Thread Type (Side 1) | 1/2-20 UNF |
| Thread Type (Side 2) | 1/2-20 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2B Thread |
| Standard (Side 2) | ISO 9974 |
| Weight | 0.08 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/16" Female JIC Swivel
- Thread1/2-20 UNF
- Tube OD5/16"
- StandardSAE J514 - Class 2B Thread
Side 2
M12X1.5 Male Metric 60° Line/Port
- Thread1/2-20 UNF
- StandardISO 9974
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight
- Weight0.08 lb
Product Family
CategoryJIC 37° Flare Fittings
Family7025
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | FF4180-0512S | 7025-05-12 |
| Parker (Triple-Lok / TFD) | F68X-5-12 | 7025-05-12 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
