JIC 37° Flare Fittings · 7025 family
7025-06-18

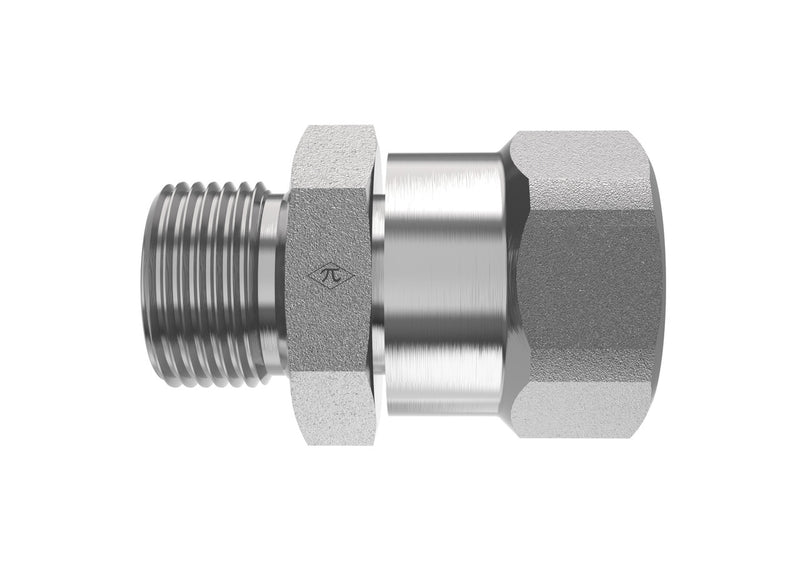

3/8" Female JIC Swivel x M18X1.5 Male Metric 60° Line/Port · Straight
$8.30
per pieceIn stock
- Side 1
- 3/8" Female JIC Swivel
- Side 2
- M18X1.5 Male Metric 60° Line/Port
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Female JIC Swivel
Side 2M18X1.5 Male Metric 60° Line/Port
Thread Type9/16-18 UNF
Tube OD3/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight
StandardSAE J514 / ISO 9974

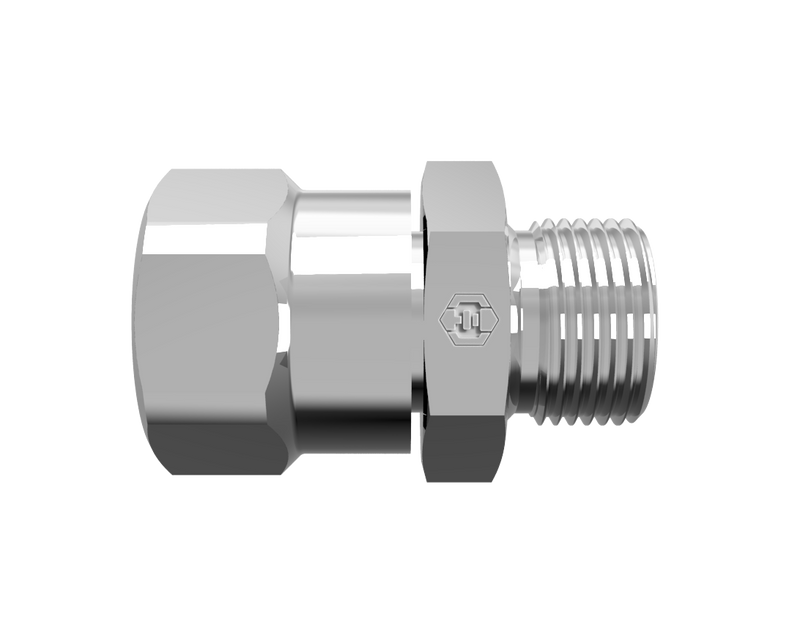

7025-06-18 is a 3/8" Female JIC Swivel x M18X1.5 Male Metric 60° Line/Port in the 7025 Series. For connecting 37° flared tubes or lines to metric port using a swivel for alignment.
Specifications
| Part Number | 7025-06-18 |
|---|---|
| Series | 7025 |
| Product Type | Straight |
| Side 1 Connection | 3/8" Female JIC Swivel |
| Side 2 Connection | M18X1.5 Male Metric 60° Line/Port |
| Tube OD | 3/8" |
| Thread Type (Side 1) | 9/16-18 UNF |
| Thread Type (Side 2) | 9/16-18 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2B Thread |
| Standard (Side 2) | ISO 9974 |
| Weight | 0.17 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Female JIC Swivel
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514 - Class 2B Thread
Side 2
M18X1.5 Male Metric 60° Line/Port
- Thread9/16-18 UNF
- StandardISO 9974
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight
- Weight0.17 lb
Product Family
CategoryJIC 37° Flare Fittings
Family7025
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | FF4180-0618S | 7025-06-18 |
| Parker (Triple-Lok / TFD) | F68X-6-18 | 7025-06-18 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
