JIC 37° Flare Fittings · 2500-FG family

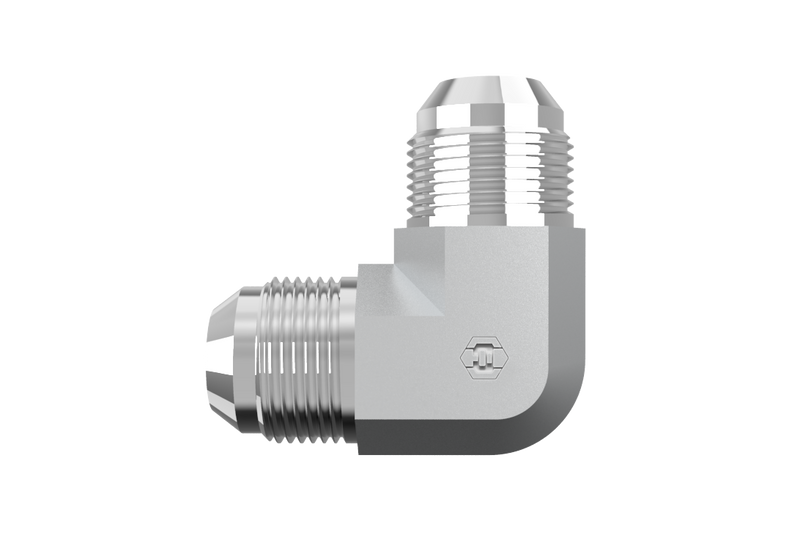

2500-10-10-SS
5/8" Male JIC x 5/8" Male JIC · Union Elbow
$31.97
per pieceIn stock
- Side 1
- 5/8" Male JIC
- Side 2
- 5/8" Male JIC
- Material
- Stainless Steel
- Thread
- 7/8-14 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/8" Male JIC
Side 25/8" Male JIC
Thread Type7/8-14 UNF
Tube OD5/8"
MaterialStainless Steel
ConfigurationUnion Elbow
StandardSAE J514
2500-10-10-SS is a 5/8" Male JIC x 5/8" Male JIC in the 2500-FG Series. For connecting two 37° flared tubes or lines at a 90° angle.
Specifications
| Part Number | 2500-10-10-SS |
|---|---|
| Series | 2500-FG |
| Product Type | Union Elbow |
| Side 1 Connection | 5/8" Male JIC |
| Side 2 Connection | 5/8" Male JIC |
| Tube OD (Side 1) | 5/8" |
| Thread Type (Side 1) | 7/8-14 UNF |
| Thread Type (Side 2) | 7/8-14 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.30 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/8" Male JIC
- Thread7/8-14 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2A Thread
Side 2
5/8" Male JIC
- Thread7/8-14 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialStainless Steel
- ConfigurationUnion Elbow
- Weight0.30 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2500-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2039-10-10 | 2500-10-10-SS |
| Parker (Triple-Lok / TFD) | 10 ETX-SS | 2500-10-10-SS |
| Sae | SAE J514 10-10 070201S | 2500-10-10-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
