JIC 37° Flare Fittings · 2500-FG family
2500-12-12-B

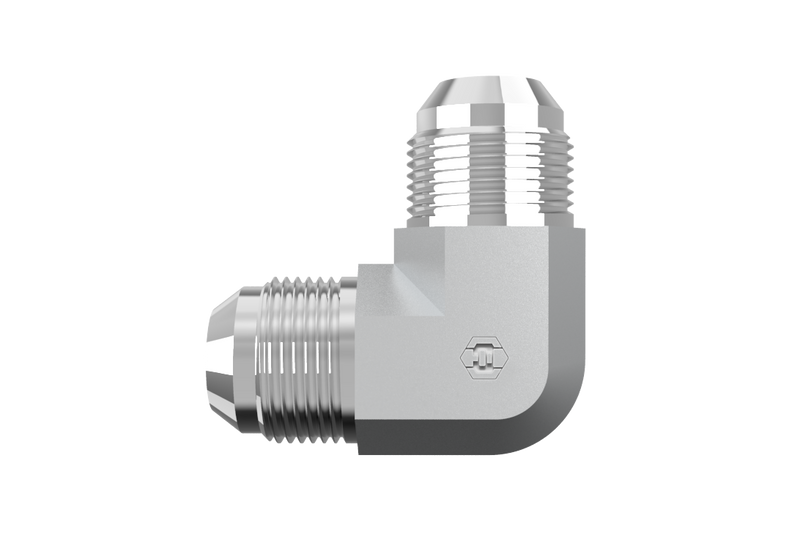

3/4" Male JIC x 3/4" Male JIC · Union Elbow
$11.73
per pieceIn stock
- Side 1
- 3/4" Male JIC
- Side 2
- 3/4" Male JIC
- Material
- Brass
- Plating
- Natural Finish
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Male JIC
Side 23/4" Male JIC
Thread Type1-1/16-12 UN
Tube OD3/4"
MaterialBrass
Plating / FinishNatural Finish
ConfigurationUnion Elbow
StandardSAE J514
2500-12-12-B is a 3/4" Male JIC x 3/4" Male JIC in the 2500-FG Series. For connecting two 37° flared tubes or lines at a 90° angle.
Specifications
| Part Number | 2500-12-12-B |
|---|---|
| Series | 2500-FG |
| Product Type | Union Elbow |
| Side 1 Connection | 3/4" Male JIC |
| Side 2 Connection | 3/4" Male JIC |
| Tube OD (Side 1) | 3/4" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Brass |
| Finish / Plating | Natural Finish |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.57 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Male JIC
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2A Thread
Side 2
3/4" Male JIC
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialBrass
- PlatingNatural Finish
- ConfigurationUnion Elbow
- Weight0.57 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2500-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2039-12-12B | 2500-12-12-B |
| Parker (Triple-Lok / TFD) | 12 ETX-B | 2500-12-12-B |
| Sae | SAE J514 12-12 070201B | 2500-12-12-B |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
