JIC 37° Flare Fittings · 2701-FG family
2701-02-02-SS

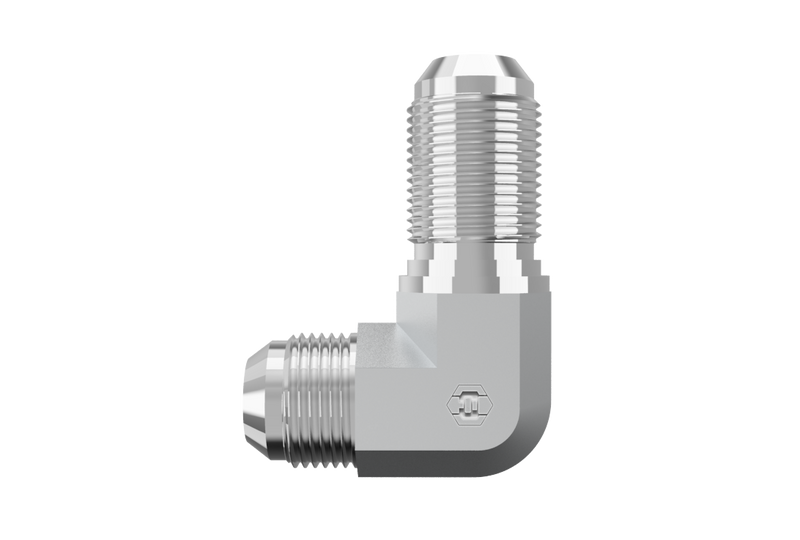

1/8" Male JIC Bulkhead x 1/8" Male JIC · Bulkhead Elbow
$10.89
per pieceIn stock
- Side 1
- 1/8" Male JIC Bulkhead
- Side 2
- 1/8" Male JIC
- Material
- Stainless Steel
- Thread
- 5/16-24 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/8" Male JIC Bulkhead
Side 21/8" Male JIC
Thread Type5/16-24 UNF
Tube OD1/8"
MaterialStainless Steel
ConfigurationBulkhead Elbow
StandardSAE J514
2701-02-02-SS is a 1/8" Male JIC Bulkhead x 1/8" Male JIC in the 2701-FG Series. For routing 37° flared tubes or lines through a panel or wall at a 90° angle, secured with a bulkhead locknut.
Specifications
| Part Number | 2701-02-02-SS |
|---|---|
| Series | 2701-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 1/8" Male JIC Bulkhead |
| Side 2 Connection | 1/8" Male JIC |
| Tube OD (Side 1) | 1/8" |
| Thread Type (Side 1) | 5/16-24 UNF |
| Thread Type (Side 2) | 5/16-24 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.01 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/8" Male JIC Bulkhead
- Thread5/16-24 UNF
- Tube OD1/8"
- StandardSAE J514 - Class 2A Thread
Side 2
1/8" Male JIC
- Thread5/16-24 UNF
- Tube OD1/8"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialStainless Steel
- ConfigurationBulkhead Elbow
- Weight0.01 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2701-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2043-1-2-2 | 2701-02-02-SS |
| Parker (Triple-Lok / TFD) | 2 WETX-SS | 2701-02-02-SS |
| Sae | SAE J514 2-2 070701S | 2701-02-02-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
