JIC 37° Flare Fittings · 2701-FG family
2701-04-04-B
1/4" Male JIC Bulkhead x 1/4" Male JIC · Bulkhead Elbow
$31.32
per pieceIn stock
- Side 1
- 1/4" Male JIC Bulkhead
- Side 2
- 1/4" Male JIC
- Material
- Brass
- Plating
- Natural Finish
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male JIC Bulkhead
Side 21/4" Male JIC
Thread Type7/16-20 UNF
Tube OD1/4"
MaterialBrass
Plating / FinishNatural Finish
ConfigurationBulkhead Elbow
StandardSAE J514

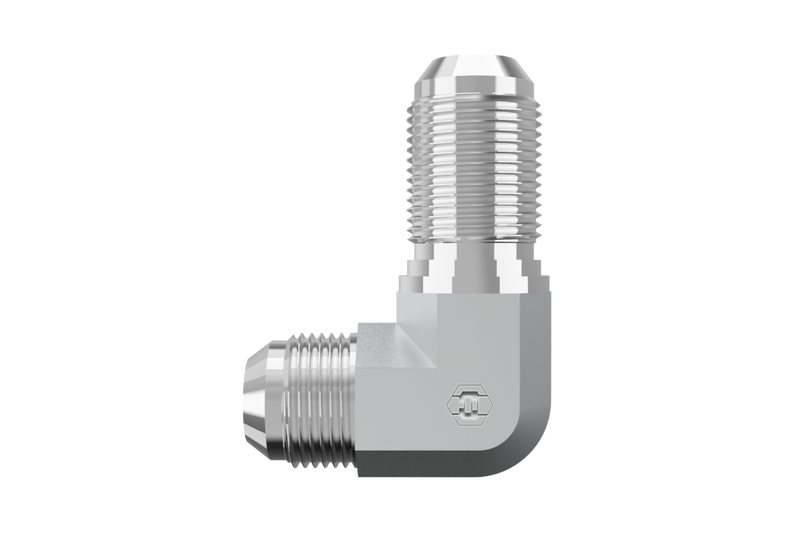

2701-04-04-B is a 1/4" Male JIC Bulkhead x 1/4" Male JIC in the 2701-FG Series. 2701-FG bends a male JIC 37° flare tube end through 90 degrees to a second male JIC end, mounting as a bulkhead elbow in a forged one-piece body.
Specifications
| Part Number | 2701-04-04-B |
|---|---|
| Series | 2701-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 1/4" Male JIC Bulkhead |
| Side 2 Connection | 1/4" Male JIC |
| Tube OD (Side 1) | 1/4" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Brass |
| Finish / Plating | Natural Finish |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.10 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male JIC Bulkhead
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1/4" Male JIC
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialBrass
- PlatingNatural Finish
- ConfigurationBulkhead Elbow
- Weight0.10 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2701-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2043-1-4-4B | 2701-04-04-B |
| Parker (Triple-Lok / TFD) | 4 WETX-B | 2701-04-04-B |
| Sae | SAE J514 4-4 070701B | 2701-04-04-B |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
