JIC 37° Flare Fittings · 2701-FG family
2701-10-10-FG

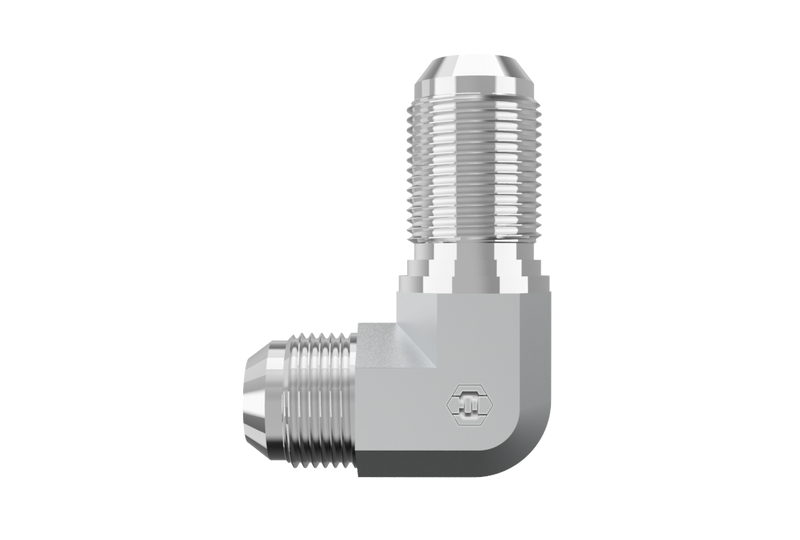

5/8" Male JIC Bulkhead x 5/8" Male JIC · Bulkhead Elbow
$14.91
per pieceIn stock
- Side 1
- 5/8" Male JIC Bulkhead
- Side 2
- 5/8" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/8" Male JIC Bulkhead
Side 25/8" Male JIC
Thread Type7/8-14 UNF
Tube OD5/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationBulkhead Elbow
StandardSAE J514
2701-10-10-FG is a 5/8" Male JIC Bulkhead x 5/8" Male JIC in the 2701-FG Series. 2701-FG bends a male JIC 37° flare tube end through 90 degrees to a second male JIC end, mounting as a bulkhead elbow in a forged one-piece body.
Specifications
| Part Number | 2701-10-10-FG |
|---|---|
| Series | 2701-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 5/8" Male JIC Bulkhead |
| Side 2 Connection | 5/8" Male JIC |
| Tube OD (Side 1) | 5/8" |
| Thread Type (Side 1) | 7/8-14 UNF |
| Thread Type (Side 2) | 7/8-14 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.43 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/8" Male JIC Bulkhead
- Thread7/8-14 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2A Thread
Side 2
5/8" Male JIC
- Thread7/8-14 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationBulkhead Elbow
- Weight0.43 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2701-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2043-1-10-10S | 2701-10-10-FG |
| Parker (Triple-Lok / TFD) | 10 WETX-S | 2701-10-10-FG |
| Sae | SAE J514 10-10 070701C | 2701-10-10-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
