JIC 37° Flare Fittings · 2701-FG family

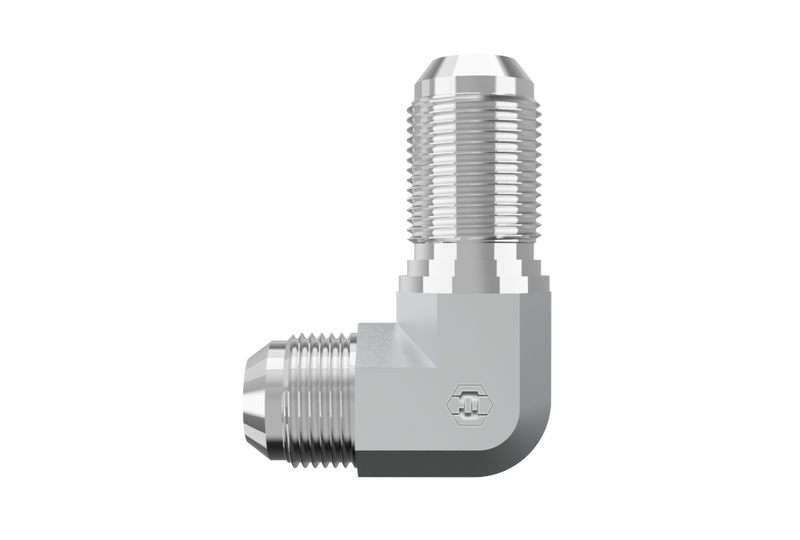

2701-12-12-FG
3/4" Male JIC Bulkhead x 3/4" Male JIC · Bulkhead Elbow
$5.94
per pieceIn stock
- Side 1
- 3/4" Male JIC Bulkhead
- Side 2
- 3/4" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Male JIC Bulkhead
Side 23/4" Male JIC
Thread Type1-1/16-12 UN
Tube OD3/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationBulkhead Elbow
StandardSAE J514
2701-12-12-FG is a 3/4" Male JIC Bulkhead x 3/4" Male JIC in the 2701-FG Series. For routing 37° flared tubes or lines through a panel or wall at a 90° angle, secured with a bulkhead locknut.
Specifications
| Part Number | 2701-12-12-FG |
|---|---|
| Series | 2701-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 3/4" Male JIC Bulkhead |
| Side 2 Connection | 3/4" Male JIC |
| Tube OD (Side 1) | 3/4" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.68 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Male JIC Bulkhead
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2A Thread
Side 2
3/4" Male JIC
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationBulkhead Elbow
- Weight0.68 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2701-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2043-1-12-12S | 2701-12-12-FG |
| Parker (Triple-Lok / TFD) | 12 WETX-S | 2701-12-12-FG |
| Sae | SAE J514 12-12 070701C | 2701-12-12-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
