JIC 37° Flare Fittings · 2701-FG family
2701-12-16-FG
3/4" Male JIC Bulkhead x 1" Male JIC · Bulkhead Elbow
$120.09
per pieceIn stock
- Side 1
- 3/4" Male JIC Bulkhead
- Side 2
- 1" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Male JIC Bulkhead
Side 21" Male JIC
Thread Type1-1/16-12 UN
Tube OD3/4" × 1"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationBulkhead Elbow
StandardSAE J514

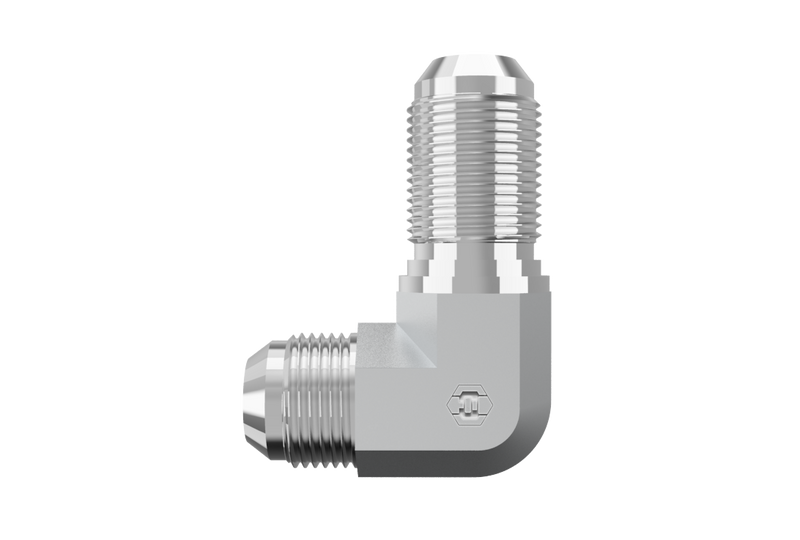

2701-12-16-FG is a 3/4" Male JIC Bulkhead x 1" Male JIC in the 2701-FG Series. 2701-FG bends a male JIC 37° flare tube end through 90 degrees to a second male JIC end, mounting as a bulkhead elbow in a forged one-piece body.
Specifications
| Part Number | 2701-12-16-FG |
|---|---|
| Series | 2701-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 3/4" Male JIC Bulkhead |
| Side 2 Connection | 1" Male JIC |
| Tube OD (Side 1 / Side 2) | 3/4" / 1" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.88 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Male JIC Bulkhead
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male JIC
- Thread1-1/16-12 UN
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationBulkhead Elbow
- Weight0.88 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2701-FG
