JIC 37° Flare Fittings · 2702-FG family
2702-16-16-SS
1" Male JIC Bulkhead x 1" Male JIC · Bulkhead Elbow
$132.03
per pieceIn stock
- Side 1
- 1" Male JIC Bulkhead
- Side 2
- 1" Male JIC
- Material
- Stainless Steel
- Thread
- 1-5/16-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" Male JIC Bulkhead
Side 21" Male JIC
Thread Type1-5/16-12 UN
Tube OD1"
MaterialStainless Steel
ConfigurationBulkhead Elbow
StandardSAE J514

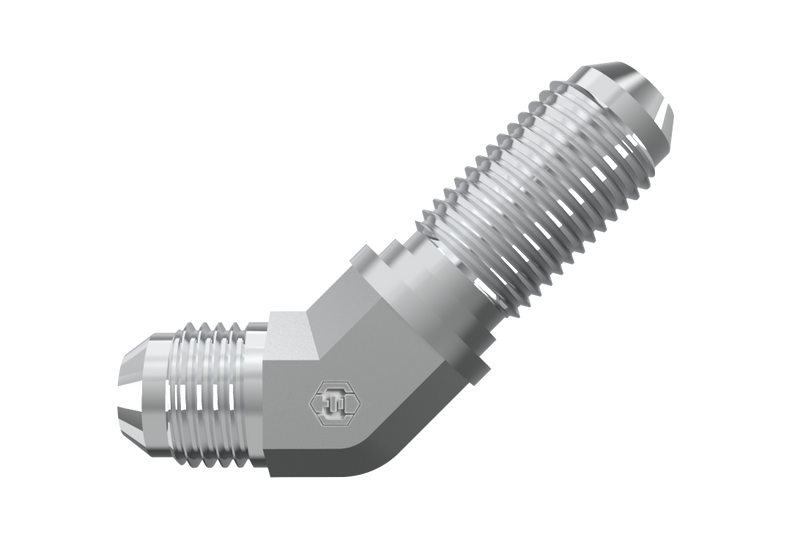

2702-16-16-SS is a 1" Male JIC Bulkhead x 1" Male JIC in the 2702-FG Series. For routing 37° flared tubes or lines through a panel or wall at a 45° angle, secured with a bulkhead locknut.
Specifications
| Part Number | 2702-16-16-SS |
|---|---|
| Series | 2702-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 1" Male JIC Bulkhead |
| Side 2 Connection | 1" Male JIC |
| Tube OD (Side 1) | 1" |
| Thread Type (Side 1) | 1-5/16-12 UN |
| Thread Type (Side 2) | 1-5/16-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.81 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" Male JIC Bulkhead
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male JIC
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialStainless Steel
- ConfigurationBulkhead Elbow
- Weight0.81 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2702-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2042-1-16-16 | 2702-16-16-SS |
| Parker (Triple-Lok / TFD) | 16 WNTX-SS | 2702-16-16-SS |
| Sae | SAE J514 16-16 070801S | 2702-16-16-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
