JIC 37° Flare Fittings · 6565 family
6565-20-20-SS

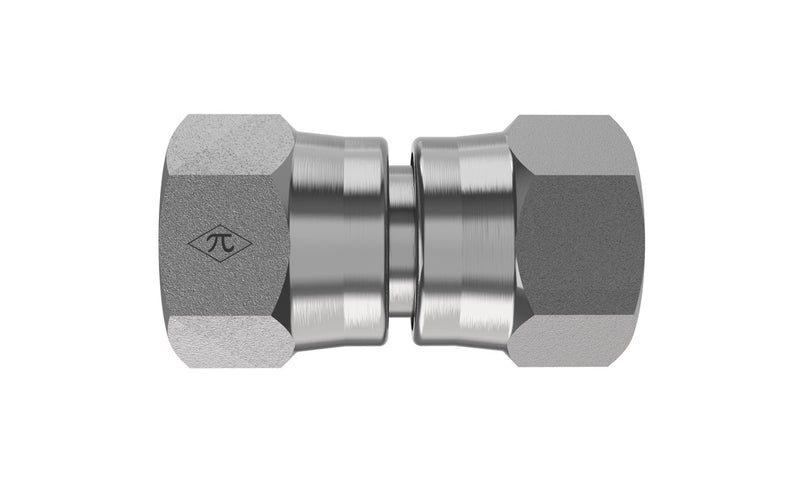

1-1/4" Female JIC Swivel x 1-1/4" Female JIC Swivel · Swivel Union
$143.62
per pieceIn stock
- Side 1
- 1-1/4" Female JIC Swivel
- Side 2
- 1-1/4" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 1-5/8-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" Female JIC Swivel
Side 21-1/4" Female JIC Swivel
Thread Type1-5/8-12 UN
Tube OD1-1/4"
MaterialStainless Steel
ConfigurationSwivel Union
StandardSAE J514

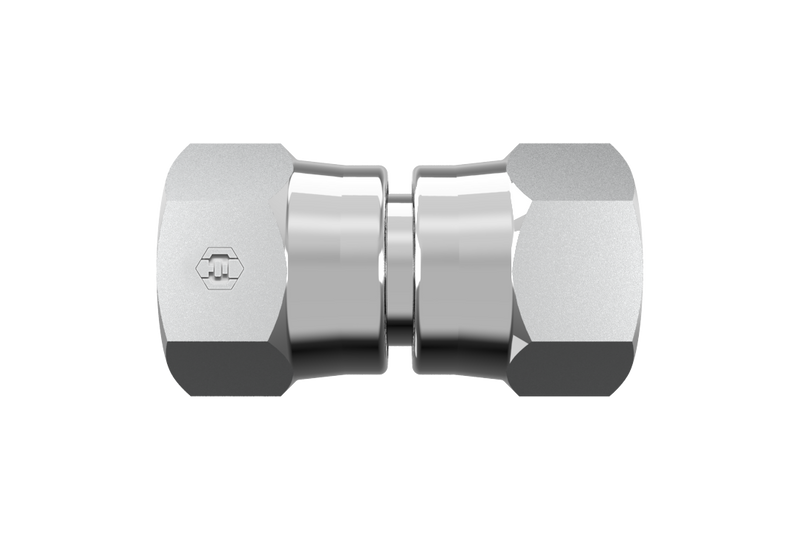

6565-20-20-SS is a 1-1/4" Female JIC Swivel x 1-1/4" Female JIC Swivel in the 6565 Series. For joining two JIC lines together using swivels for alignment.
Specifications
| Part Number | 6565-20-20-SS |
|---|---|
| Series | 6565 |
| Product Type | Swivel Union |
| Side 1 Connection | 1-1/4" Female JIC Swivel |
| Side 2 Connection | 1-1/4" Female JIC Swivel |
| Tube OD (Side 1) | 1-1/4" |
| Thread Type (Side 1) | 1-5/8-12 UN |
| Thread Type (Side 2) | 1-5/8-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2B Thread |
| Weight | 0.96 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" Female JIC Swivel
- Thread1-5/8-12 UN
- Tube OD1-1/4"
- StandardSAE J514 - Class 2B Thread
Side 2
1-1/4" Female JIC Swivel
- Thread1-5/8-12 UN
- Tube OD1-1/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Union
- Weight0.96 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6565
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-FF1730-2020 | 6565-20-20-SS |
| Parker (Triple-Lok / TFD) | 20 HX6-SS | 6565-20-20-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
