7100-04-04-SS
1/4" Male JIC x 1/4" Male BSPT · Male Elbow
$22.98
per pieceIn stock
- Side 1
- 1/4" Male JIC
- Side 2
- 1/4" Male BSPT
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male JIC
Side 21/4" Male BSPT
Thread Type7/16-20 UNF
Tube OD1/4"
Pipe Size1/4"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationMale Elbow
StandardSAE J514 / ISO 7/1 (BSPT)

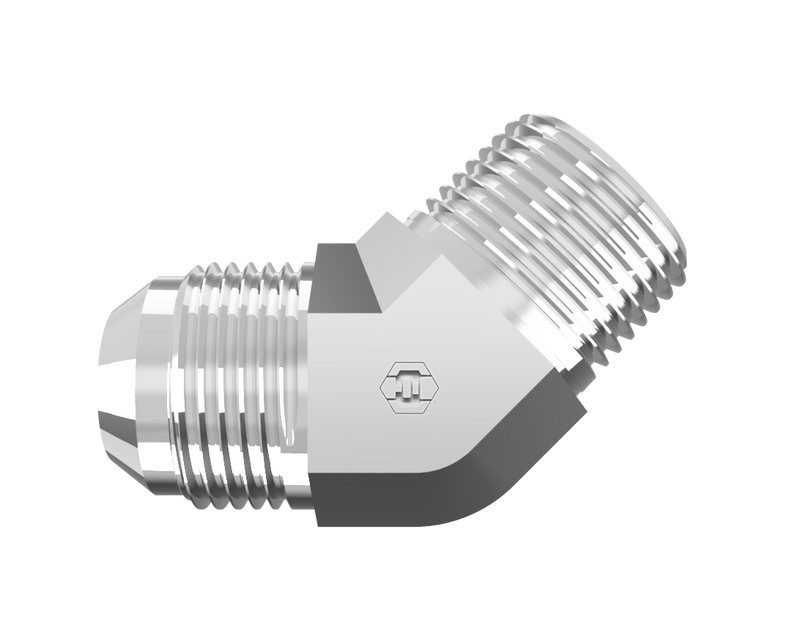

7100-04-04-SS is a 1/4" Male JIC x 1/4" Male BSPT in the 7100-FG Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe at a 45° angle.
Specifications
| Part Number | 7100-04-04-SS |
|---|---|
| Series | 7100-FG |
| Product Type | Male Elbow |
| Side 1 Connection | 1/4" Male JIC |
| Side 2 Connection | 1/4" Male BSPT |
| Tube OD | 1/4" |
| Pipe Size (Side 2) | 1/4" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | ISO 7/1 (BSPT) |
| Weight | 0.08 lb |
| Category | BSP Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male JIC
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1/4" Male BSPT
- Thread7/16-20 UNF
- Pipe Size1/4"
- StandardISO 7/1 (BSPT)
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationMale Elbow
- Weight0.08 lb
Product Family
CategoryBSP Fittings
Family7100-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-GG210-NP04-04 | 7100-04-04-SS |
| Parker (Triple-Lok / TFD) | 4-4V3MXSS | 7100-04-04-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
