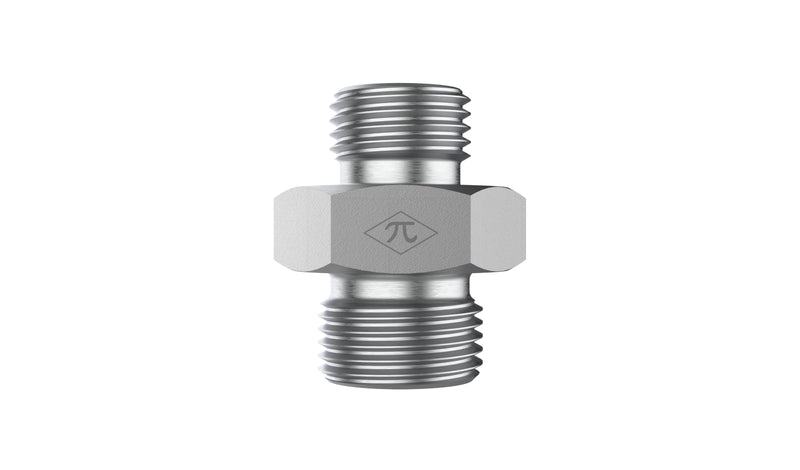

FS2403-24-24
1-1/2" Male ORFS x 1-1/2" Male ORFS · Straight Union
$57.08
per pieceIn stock
- Side 1
- 1-1/2" Male ORFS
- Side 2
- 1-1/2" Male ORFS
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/2" Male ORFS
Side 21-1/2" Male ORFS
Thread Type2-12 UNF
Tube OD1-1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight Union
StandardSAE J1453
FS2403-24-24 is a 1-1/2" Male ORFS x 1-1/2" Male ORFS in the FS2403 Series. FS2403 is a straight union with a male ORFS face-seal tube end on each side, mating two female ORFS swivel nuts for SAE J1453 face-seal service.
Specifications
| Part Number | FS2403-24-24 |
|---|---|
| Series | FS2403 |
| Product Type | Straight Union |
| Side 1 Connection | 1-1/2" Male ORFS |
| Side 2 Connection | 1-1/2" Male ORFS |
| Tube OD (Side 1) | 1-1/2" |
| Thread Type (Side 1) | 2-12 UNF |
| Thread Type (Side 2) | 2-12 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J1453 - O-Ring Face Seal |
| Weight | 1.19 lb |
| Category | ORFS Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/2" Male ORFS
- Thread2-12 UNF
- Tube OD1-1/2"
- StandardSAE J1453 - O-Ring Face Seal
Side 2
1-1/2" Male ORFS
- Thread2-12 UNF
- Tube OD1-1/2"
- StandardSAE J1453 - O-Ring Face Seal
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight Union
- Weight1.19 lb
Product Family
CategoryORFS Fittings
FamilyFS2403
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Aeroquip | FF2000T2424S | FS2403-24-24 |
| Parker (Triple-Lok / TFD) | 24 HLO-S | FS2403-24-24 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
