FS2403-32-32

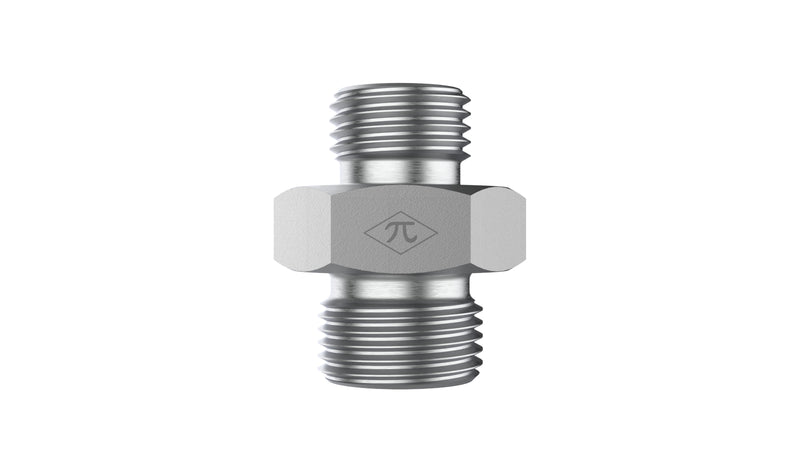

2" Male ORFS x 2" Male ORFS · Union
$29.00
per pieceIn stock
- Side 1
- 2" Male ORFS
- Side 2
- 2" Male ORFS
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male ORFS
Side 22" Male ORFS
Thread Type2-1/2-12 UN
Tube OD2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationUnion
StandardSAE J1453
FS2403-32-32 is a 2" Male ORFS x 2" Male ORFS in the FS2403 Series. For connecting two ORFS-sealed tubes or lines in a straight configuration.
Specifications
| Part Number | FS2403-32-32 |
|---|---|
| Series | FS2403 |
| Product Type | Union |
| Side 1 Connection | 2" Male ORFS |
| Side 2 Connection | 2" Male ORFS |
| Tube OD (Side 1) | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J1453 - O-Ring Face Seal |
| Weight | 1.39 lb |
| Category | ORFS Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male ORFS
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J1453 - O-Ring Face Seal
Side 2
2" Male ORFS
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J1453 - O-Ring Face Seal
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationUnion
- Weight1.39 lb
Product Family
CategoryORFS Fittings
FamilyFS2403
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | FF2000T3232S | FS2403-32-32 |
| Parker (Triple-Lok / TFD) | 32 HLO-S | FS2403-32-32 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
